Sonnenschein Batteries







1.  SOLAR series



Sonnenschein Solar batteries are specially designed for small to medium performance requirements in leisure and consumer applications.

The advantages of the maintenance free VRLA - batteries are enhanced by the worldwide high reputation and technical image of the dryfit technology. Typical applications are weekend and holiday houses without mains supply, street solar stations, information signs, parking meters, wireless emergency phone boxes and also other safety equipment power supplies.



Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00001 S12/6.6 S 12 6,6 C100 151,7 65,5 98,4 2,6



Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00002 S12/17 G5 12 17 C100 181 76 167 6,1



Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00003 S12/27 G5 12 27 C100 167 176 126 9,7





Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00004 S12/32 G6 12 32 C100 197 132 184 11,2







Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00005 S12/41 A 12 41 C100 210 175 175 14,8







Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00006 S12/60 A 12 60 C100 261 136 230 19







Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00007 S12/85 A * 12 85 C100 353 175 190 27,3







Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00008 S12/90 A 12 90 C100 330 171 236 31,3







Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00009 S12/130 A 12 130 C100 286 269 230 39







Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

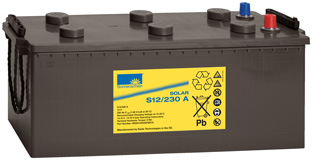

LPB00010 S12/230 A 12 230 C100 518 274 238 70





  >>>back to top



2.SOLAR BLOCK Series







The Sonnenschein Solar Block battery range is very powerful and reliable in rough application conditions. As well as for use in private areas like holiday and weekend houses with more consumer terminals, this range is the ideal energy source for medium industrial solar systems, small solar and wind power stations, offshore buoys, yachts and measuring stations as well as for other safety equipment power supplies.





Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00011 SB12/60 A 12 60 C100 278 175 190 20





Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00012 SB12/75 A 12 75 C100 330 171 236 28





Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

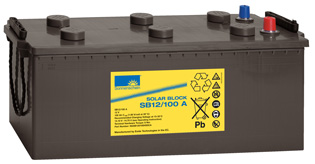

LPB00013 SB12/100 A 12 100 C100 513 189 223 39



Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

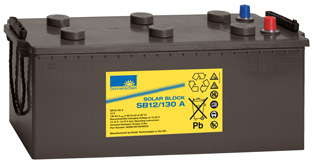

LPB00014 SB12/130 A 12 130 C100 513 223 223 48




Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

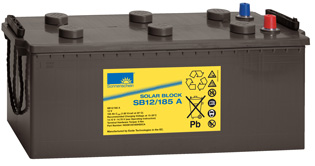

LPB00015 SB12/185 A 12 185 C100 518 274 238 65




Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00016 SB6/200 A 6 200 C100 190 244 275 31



Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00017 SB6/330 A 6 330 C100 312 182 359 48







 >>>back to top



3. SOLAR A600 Series



Sonnenschein A600 Solar batteries are developed for medium to large solar powered applications. The recyclables and long storage life without recharge makes this environmentally friendly solar battery system absolutely recommendable for various requirement profiles. Typical applications for these maintenance free VRLA batteries with successful dryfit technology, are solar and wind power stations, power distribution companies, telecommunications, railways and many other safety equipment power supplies. Maintenance free (no topping up) 1600 cycles.




ProductCode Model Voltage (V) Capacity (Ah) Normare Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00018 OPzV 240 2 240 C100 105 208 398 19,5
LPB00019 OPzV 300 2 300 C100 126 208 398 23,5
LPB00020 OPzV 360 2 360 C100 147 208 398 28


Product Code Model Voltage (V) Capacity (Ah) Normare Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00021 OPzV 400 2 400 C100 126 208 513 31
LPB00022 OPzV 500 2 500 C100 147 208 513 36,5
LPB00023 OPzV 600 2 600 C100 168 208 513 42




Product Code Model Voltage (V) Capacity (Ah) Normare Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00024 OPzV 720 2 720 C100 147 208 688 50
LPB00025 OPzV 960 2 960 C100 215 193 688 68
LPB00026 OPzV 1200 2 1200 C100 215 235 688 82







Product Code Model Voltage (V) Capacity (Ah) Normare Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00027 OPzV 1400 2 1400 C100 215 277 688 97
LPB00028 OPzV 1700 2 1700 C100 215 277 838 120
LPB00029 OPzV 2300 2 2300 C100 215 400 815 160





Product Code Model Voltage (V) Capacity (Ah) Normare Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00030 OPzV 2900 2 2900 C100 215 490 815 200
LPB00031 OPzV 3500 2 3500 C100 215 580 815 240



  >>>back to top
