Charge / Controller - XANTREX



 (solar charger for battery)

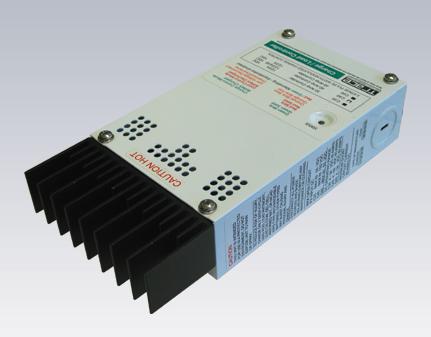

Features
  • The C Series offers three models, the C35, C40, and C60, that can handle 35,40, and 60 amps of DC current.
  • Silent, pulse width modulated (PWM), high efficiency operation.
  • Three-stage battery charging (bulk, absorption, and float).
  • Automatic overload protection in both active and passive modes.
  • PV array short circuit and reverse polarity protection.
  • Durable construction.
  • Backed by a two year warranty.
  • Microprocessor controlled.

    As a Solar Charge Controller

    • When used as a solar charge controller, the C40 can control 12, 24, or 48 VDC array operation and the C35 and C60 can control 12 and 24 VDC array operation.

    • All units offer selectable settings for NiCad, flooded lead acid, gel, or absorbed glass mat batteries.

    • Cand e folosit ca

    As a DC load controller

    • As a DC load controller, the C Series has a low voltage disconnect warning system and field adjustable set points that govern automatic low and high voltage disconnect.

    • Manual reset switch for emergency low voltage operation.

    As a Diversion Load Controller

    • The C Series automatically directs extra power to a dedicated load such as an electric water heater and ensures batteries are never over-charged.

    Options

    • Plug-in remote temperature sensor (BTS) for increased charging precision.

    • Cumulative amp-hour meter (CM) that can be installed on the face of the controller, or remotely (CM/R), up to 100 feet (30 m) away.

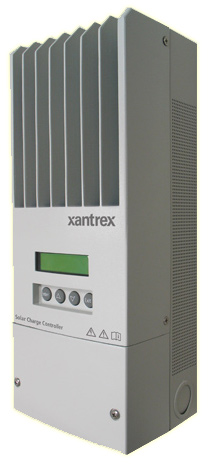

1. XW MPPT - regulator solar

Product Code Model Nominal Voltage (V)
LPC00116 XW-MPPT Solar Charge Controller 12/24/48






Electrical Specifications
Nominal battery voltage  12, 24, 36, 48, 60 Vdc
Maximum PV array voltage (operating)  140 Vdc
Maximum PV array open circuit voltage  150 Vdc
Array short-circuit current  60 Adc maximum
Maximum and minimum wire size in conduit  #6 AWG to #14 AWG
Total power consumption while operating 2.5 W (tare)
Charger regulation method: Three-stage (bulk, absorption, float)
  Two-stage (bulk, absorption)
Mechanical Specifications
Dimensions (H W D)  14 5 5 (368 146 138 mm)
Weight (Controller only) 10.75 lb (4.8 kg)
Weight (shipping)  17.6 lb (8 kg)
Shipping dimensions (H W D) 19 9 9 (483 229 350 mm)
Mounting  Vertical wall mount
Standard warranty Five years
Part number 865-1030
Environmental Specifications
Enclosure type  Indoor, ventilated, sheet metal chassis with 7/8and 1
  (22.22 mm and 27.76 mm) knockouts and aluminum heat-sink
Operating temperature range (full power)  -4 to 113 F (-20 to +45 C)
Storage temperature  -40 to 185 F (-40 to +85 C)
Altitude limit (operating)  Sea level to 15,000 feet (4572 m) @ 15 C
Optional Accessories
XW System Control Panel 865-1050
XW Automatic Generator Start 865-1060
Network cables:
3 feet (0.9 m) 809-0935
5 feet (1.5 m) 809-0936
7 feet (2.0 m) 809-0937
10 feet (3.0 m)  809-0938
14 feet (4.3 m)  809-0939
25 feet (7.6 m)  809-0940
50 feet (15.2 m)  809-0941
75 feet (22.9 m)  809-0942
Network terminators: Male (two per pack): 809-0901
  Female (two per pack): 809-0905





  >>>back to top



2. Tip C35

Product Code Model Nominal Voltage (V)
LPC00031 C35 12/24





  Electrical Specifications
  Voltage Configurations   12 and 24 VDC
  Max. PV Open Circuit Array Voltage   55 VDC
  Charging / Load Current (at 25 C)   35 amps DC
  Max. Peak current   85 amps
  Max. Voltage Drop through Controller   0.30 volts
  Typical Operating Consumption   15 ma
  Typical Idle Consumption   3 ma
  Recommended Breaker Size   45 amps
  Recommended Wire Size   #8 AWG
  Lead Acid Battery Settings   Adjustable
  NiCad Battery Settings   Adjustable
  Load Control Mode   Low Voltage Reconnect - Adjustable (sticker provided with unit) all models
      Low Voltage Disconnect - User selectable manual or automatic reconnection - includes warning flash before disconnect and provides a one time, user selectable grace period) all models
  General Specifications
  Specified Temperature Range   32 F to 104 F (0 C to 40 C)
  Enclosure Type   Indoor, ventilated, powder coated steel with 3/4" and 1" knockouts
  Unit Weight   2.5 lb (1.2 kg)
  Shipping Weight   3.0 lb (1.4 kg)
  Dimensions (H x W x D)   8.0 x 5.0 x 2.5" (20.3 x 17.8 x 6.4 cm)
  Shipping Dimensions (H x W x D)   12.4 x 7 x 2.5" (31.5 x 17.8 x 6.4 cm)
  Mounting   Vertical wall mount - indoor only
  Altitude - Operating   15,000' (4,572 m)
  Altitude - Non-Operating   50,000' (15,240 m)
  Warranty   Two years
  Part Numbers   C5, C40, C60 - Controllers
  CM - Front Display Panel
  CM/R-50, CM/R-100 - Remote Display Panel
      BTS - Battery temperature sensor






  >>>back to top



3. Tip C40



Product Code

Model

Nominal Voltage (V)

LPC00032

C40

12/24




  Electrical Specifications
  Voltage Configurations   12, 24 and 48 VDC
  Max. PV Open Circuit Array Voltage   125 VDC
  Charging / Load Current (at 25 C)   40 amps DC
  Max. Peak current   85 amps
  Max. Voltage Drop through Controller   0.30 volts
  Typical Operating Consumption   15 ma
  Typical Idle Consumption   3 ma
  Recommended Breaker Size   50 amps
  Recommended Wire Size   #8 AWG
  Lead Acid Battery Settings   Adjustable
  NiCad Battery Settings   Adjustable
  Load Control Mode   Low Voltage Reconnect - Adjustable (sticker provided with unit) all models
      Low Voltage Disconnect - User selectable manual or automatic reconnection - includes warning flash before disconnect and provides a one time, user selectable grace period) all models
  General Specifications
  Specified Temperature Range   32 F to 104 F (0 C to 40 C)
  Enclosure Type   Indoor, ventilated, powder coated steel with 3/4" and 1" knockouts
  Unit Weight   3.0 lb (1.4 kg)
  Shipping Weight   3.5 lb (1.6 kg)
  Dimensions (H x W x D)   10 x 5 x 2.5" (25.4 x 12.7 x 6.35 cm)
  Shipping Dimensions (H x W x D)   12.4 x 7 x 2.5" (31.5 x 17.8 x 6.4 cm)
  Mounting   Vertical wall mount - indoor only
  Altitude - Operating   15,000' (4,572 m)
  Altitude - Non-Operating   50,000' (15,240 m)
  Warranty   Two years



 >>>back to top



4. Tip C60



Product Code Model Nominal Voltage (V)
LPC00033 C60 12/24






  Electrical Specifications
  Voltage Configurations   12 and 24 VDC
  Max. PV Open Circuit Array Voltage   55 VDC
  Charging / Load Current (at 25 C)   60 amps DC
  Max. Peak current   85 amps
  Max. Voltage Drop through Controller   0.30 volts
  Typical Operating Consumption   15 ma
  Typical Idle Consumption   3 ma
  Recommended Breaker Size   60 amps rated at 1000% continuous duty
  Recommended Wire Size   #6 AWG rated at 90 C
  Lead Acid Battery Settings   Adjustable
  NiCad Battery Settings   Adjustable
  Load Control Mode   Low Voltage Reconnect - Adjustable (sticker provided with unit) all models
      Low Voltage Disconnect - User selectable manual or automatic reconnection - includes warning flash before disconnect and provides a one time, user selectable grace period) all models
  General Specifications
  Specified Temperature Range   32 F to 104 F (0 C to 40 C)
  Enclosure Type   Indoor, ventilated, powder coated steel with 3/4" and 1" knockouts
  Unit Weight
  Shipping Weight
  Dimensions (H x W x D)
  Shipping Dimensions (H x W x D)
  Mounting   Vertical wall mount - indoor only
  Altitude - Operating   15,000' (4,572 m)
  Altitude - Non-Operating   50,000' (15,240 m)
  Warranty   Two years






  >>>back to top
