Inverter Auto  XANTREX - DC/AC

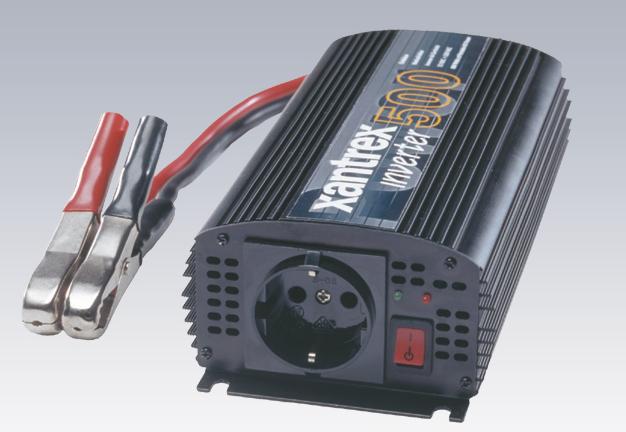

1. Inverter   -  XPOWER 150, 300, 500



Portable AC power from the battery in your vehicle

Ideal for powering recreational, mobile office equipment and other electronic appliances, XPower inverters convert 12 volts of DC battery power in your vehicle to 230 volts of AC power. Available in a range of sizes, the inverters can power a variety of electronic products including TVs, VCRs, fax machines, laptop computers, camcorders, stereos, small power tools and work lights.

Choosing the right size of inverter for a particular application is important.  For example, the XPower 150 Inverter can run a laptop for approximately nine hours from a 75-amp hour battery; the XPower 300 can run a 49 cm TV for approximately six hours from a 75-amp hour battery. The exact runtime depends on the amount of power being drawn by the application and the size and condition of the battery. The XPower Inverter 500 can be used instead of a generator for low power or intermittent loads.

Product Features

  • Available in 150, 300 or 500 watt models

  • Offer 300, 600 or 1000 watt surge capacity

  • Available in three AC outlet configurations: Schuko, UK and AUS/NZ

  • Regulated output protects sensitive equipment

  • Compact size for convenient use and storage

  • Auto shutdown prevents total battery discharge

  • Silent operation

  • Mounting brackets for convenient installation (XPower Inverter 300 and 500)

Protection Features

  • Over temperature shutdown

  • Overload shutdown

  • Low voltage shutdown (at 10.0 VDC)

  • Over voltage shutdown (at 15.0 VDC)

  • Low voltage alarm (at 10.7 VDC)

  • Short circuit protection

  • Battery reverse polarity (fuse protected)

  • LED indicator confirms fault connection





Cod Produs Model Putere (W) Tensiune Nominala Curent max. fara sarcina (A)
LPI00105 851-0162 XPower 150 12 0,18
LPI00106 851-0312 XPower 300 12 0,2
LPI00107 851-0512 XPower 500 12 0,3
LPI00108 801-5255 XPower 250 24 0,2
Models 150 300 500
Output power (continuous) 150 W 300 W 500 W
Surge capacity (peak) 300 W 600 W 1000 W
Output voltage 230 VAC +/- 5% 230 VAC +/- 5% 230 VAC +/- 5%
Output frequency 50 +/- 3Hz 50 +/- 3Hz 50 +/- 3Hz
Output waveform Modified sine wave Modified sine wave Modified sine wave
Peak efficiency 90% 90% 90%
No load current draw <0.18 A <0.2 A <0.3 A
Input voltage range 10 15 10 15 VDC 10 15 VDC
Electrical Specifications General
AC receptacle 0C to 40C 0C to 40C 0C to 40C
Display Schuko Schuko Schuko
Battery connection Power ON & Fault LEDs Power ON & Fault LEDs Power ON & Fault LEDs
Mounting bracket DC lighter plug DC lighter plug or cable clamps Cable clamps & hardwire
Internal DC fuse None Built-in Built-in
Dimensions (HxWxL) Not user replaceable Not user replaceable Not user replaceable
Weight 63 x 104 x 157 mm 66 x 104 x 200 mm 66 x 112 x 241 mm
Warranty 0.65 kg (1.54 lb) 0.79 kg (1.74 lb) 1.2 kg (2.6 lb)
Part Number Two years Two years Two years





  >>>back to top

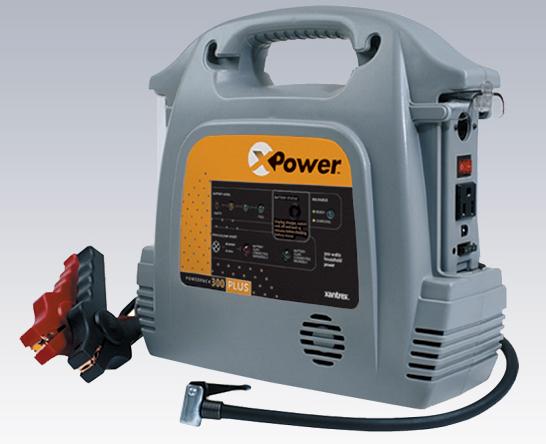

2.Inverter - XPOWER Powerpack



Description

Provides Portable Power

XPower Powerpack 300 by Xantrex provides maximum 300 watts of silent household (AC) and DC power anytime, anywhere. Its a convenient source of power for year-round use and its ideal for weather emergencies, power outages and car breakdowns. The XPower Powerpack integrates a power source for small AC and DC appliances, an emergency light, and a vehicle battery booster. The 300 Plus model also includes a 17 BAR (250 PSI) air compressor.

As the market for portable electronic devices grows, so does the need to power these devices. The XPower Powerpack provides the power to improve safety, efficiency and the quality of daily life.

XPower Powerpack 300 and 300 Plus

  • 230-volt AC and 12-volt DC outlets to power most small household appliances

  • Built-in 300 watt inverter with sealed, non-spillable 20 amp-hour AGM battery

  • 17 BAR (250 PSI) air compressor to inflate vehicle tires and small sports equipment (300 Plus model only)

  • Smart circuitry protects against reverse polarity jumpstart connections

  • Built-in fluorescent lights provide illumination in emergency situations

  • AC and DC charger cables allow recharging from home or in vehicle

  • Battery level meter to easily monitor the status of the Powerpack battery

  • AC charger offers battery overcharge protection

  • Audible alarm signals when the unit begins to overheat, and in times of under voltage conditions

  • Electrical current overload and overheating protection ensure a longer Powerpack life

Accessories

  • Jumper Cables - use the XPower Powerpack to jump start vehicles

  • AC Charger - recharge the XPower Powerpack from a standard wall outlet

  • DC Charging Cable use the XPower Powerpack to power DC-compatible appliances or to recharge the Powerpack from a car, truck, SUV or RV

  • Nozzle Adapters pump air easily into vehicle tires or small inflatable sports equipment (300 Plus model only)

  • Accessory bag helps keep XPower Powerpacks accessories together

Applications

For emergency situations:

  • Inflate vehicle tires (300 Plus model only)

  • Jump-start vehicles

  • Power emergency lights, TVs, and radios

For outdoor use:

  • Pump air into small inflatable sports equipment (300 Plus model only)

  • Power camcorders, video games, stereos, 13 TV/VCR, TV/DVD combos, computers, laptops, clock radios, and small power tools



Cod Produs Model Power (W) Tensiune Nominala
LPI00109 851-1831 Powerpack 300 12
LPI00110 851-1832 Powerpack plus 300 12
Electrical Specifications
230 volt AC section
AC output power (max continuous) 250 watts
AC output power (5 min) 300 watts
AC surge power (peak) 500 watts
AC output voltage (nominal) 230 volts
AC output frequency 50 Hz +/- 4 Hz
AC output waveform Modified sine wave
Inverter no-load current <0.20 amps
Warranty 2 years
Regulatory Approvals CE
12 volt DC section
Internal battery type Sealed lead acid, AGM
Internal battery capacity 20 amp-hours, 200 CCA
Internal battery voltage (nominal) 12 VDC
DC power socket (circuit breaker) 12 amps (automatic reset)
Cold cranking amps 200 amps
Charging System
AC charger bulk charging current (max) 500 mA
Peak charging voltage (nominal) 14.5 volts
Charge restart voltage (nominal) 12.9 volts
Float charge current (nominal) 1 mA
Charging Time
From AC outlet max. 40 hours*
From DC outlet max. 4 hours*
*Maximum charging time occurs when battery is completely discharged.
General Specifications
Air compressor None
Jump-start cables 1 meter (39"), 8 AWG
Built-in fluorescent lamp Two, 4 watt bulbs (replaceable)
Operating temperature OC - 40C (32F - 104F)
Storage temperature OC - 30C (32F - 86F)
AC receptacle Schuko, UK and AUS/NZ
Inverter low battery alarm (nominal) 10.7 volts
Inverter low battery shutdown (nominal) 10.0 volts
Dimensions (H x W x D) 30.0 x 18.2 x 31.8 cm
Weight 8.2 kg (18.0 lb)
Warranty 12 months
Part number 852-1831 (Schuko)
Regulatory Approvals CE-mark
