Inverter/charger  XANTREX - DC/AC





1. Series  inverter/controller   -  SW



The SW Inverter/Charger is our most popular off-grid power solution.  Available in 24- and 48-volt models, it provides utility-grade output power and offers high surge capacity to run most household appliances.  The SW offers many programmable features including automatic generator start and stop, and automatic load sensing.  Its built-in, fully automatic, three-stage battery charger is designed to bring maximum charge to batteries, while using minimum generator run time and fuel.



Features

  • Available in 3000 and 4500 watt models

  • Utility grade, sine wave power

  • Durable construction for long life under extreme environmental conditions

  • Three-stage battery charging (bulk, absorption, and float) and battery equalization with remote temperature sensor for increased performance

  • Programmable control module with LCD display and LED indicators

  • Low idle current (less than 1 watt) conserves energy when no loads are present

  • Soft start capability for starting heavy loads

  • Built-in starting control circuits for two- and three-wire generator starting systems

  • Parallel stacking capability for more power at the same voltage (optional equipment is required)

  • Three phase configurations available in a Power Module System for industrial quality power in remote locations (optional equipment is required; only available on 48-volt models).



Product Code Model Power (W) Nominal Voltage Current DC Max (A)
LPI00046 SW3024E 3300 24 176
LPI00047 SW3048E 3300 48 88
LPI00048 SW4548E 4500 48 120
General Specification



Temperature 0C - 25C
Weight 48 kg
Dimensions (H x W x D) 38 x 57 x 23 cm
Mounting Wall
Warranty 2 years
  Electrical Specifications



AC Voltage input 230V AC
Gama tensiune AC de intrare 150-288V AC
Curent alterativ AC de intrare 30A AC pass through and 15A AC charge
Efficiency 94%
Tensiune de iesite 230V AC
Reglaj tensiune de iesire +/- 5%
Wave form wave sinusoidal
Frequency 50 Hz (Nominal +/- 0.04% crystal controlled)
Total Distorsiuni Armonice < 5%
Releu de transfer automat 30 amps AC pass through, 15 amps AC charge
Idle Consumption < 16 wati
Protectie baterie slaba (Activat) Ajustarea parametrii deconectarii
Made in

USA





  >>>back to top



2.Series inverter - DR



The DR Inverter/Charger provides dependable modified sine wave power for businesss, homes and workshops.  Available in 1500 or 2400 watt models, it can power most common electrical appliances such as lights, televisions, cash registers, refrigerators, washing machines, computers, and power tools.  The DRs high surge capacity gives it the ability to start difficult motor loads.  Once set up, all functions of the inverter/charger are fully automatic.



Features

  • Quiet, high efficiency operation

  • Front panel LED indicators and adjustable switch selectors

  • Selectable settings for flooded lead acid, gel, or absorbed glass mat (AGM) batteries

  • Three-stage battery charging (bulk, absorption, and float) for increased performance

  • Low battery, overload, and high battery, over temperature protection circuitry

  • Fast switching (grid to battery and battery to grid) for backup power

  • Low idle current (less than one watt) conserves energy when no loads are present

  • Generator compatible

Options

  • Remote battery temperature sensor (BTS) increases battery performance and life

  • Remote control and status indicator (RC8) allows you to view system status remotely

  • Side mount conduit box (DRCB) makes code-compliant DC wiring connections convenient



Product Code Model Power (W) Nominal Voltage Current DC Max (A)
LPI00049 DR1512E 1500 12 150
LPI00050 DR1524E 1500 24 75
LPI00051 DR1548E 1500 48

37

LPI00052 DR2424E 2400 24 120
General Specification



Temperature 0C - 40C
Weight 20Kg
Dimensions (H x W x D) 21.6 x 55.9 x 18.4 cm
Mounting Wall
Warranty 2 years
Electrical Specifications



AC Voltage input 230V AC
Voltage Range AC input 80-210V AC
Current  AC input 25 amps
Efficiency 94%
Tensiune de output 230V AC
Output voltage adjust +/- 5%
Wave form Sinusoidal Modified
Frequency 50 Hz
Relay transfer automat 15 amps
Idle Consumption < 10 watt
Made in USA



 >>>back to top

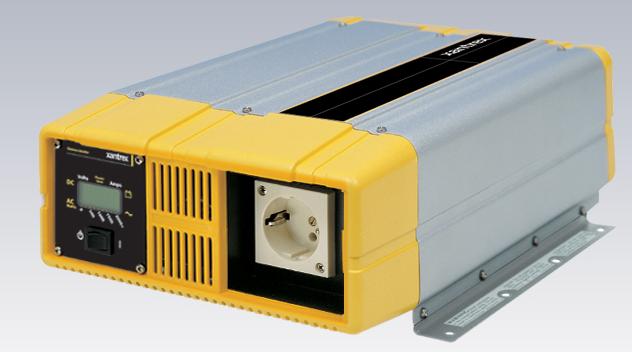

3. Seria PROSINE

Offering superior quality sine wave output, the Prosine 1000i and Prosine 1800i stand-alone inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, Prosine inverters are suitable for both heavy duty and sensitive electronic loads. The inverters are lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.



Ultra-Clean True Sine Wave Power

With less than 3% total harmonic distortion, the Prosine delivers true sine wave output that is identical to AC power supplied by your utility. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.



Product Features

  • Two models available: 1000 watt (1500 watt surge) and 1800 watt (2900 watt surge)

  • True sine wave output

  • Removable LCD display can be mounted remotely for control and monitoring

  • Unique DC terminals offer 180-degree connections for easy installation in tight places

  • Efficient powersave mode draws only 1.5 watts under no load condition

  • Two year warranty



Protection Features

  • Over temperature shutdown and automatic overload protection

  • Over voltage and under voltage protection

  • Short circuit and AC backfeed protection

Options

  • Available in 12 and 24 volt models

  • Schuko AC receptacle

  • Remote interface kit for remote mounting of display module

  • Models available with Schuko, hardwire, or hardwire with transfer switch



Product Code Model Power (W) Nominal Voltage
LPI00053 Prosine1000i/12 1000 12
LPI00054 Prosine1000i/24 1000 24
LPI00055 Prosine1000i/12 1800 12
LPI00056 Prosine1000i/24 1800 24
General Specification



Temperature 0C - 60C
Weight 7Kg
Dimensions (H x W x D) 115 x 280 x 390 mm
Warranty 2 ani
Electrical Specifications



AC Voltage input 230V AC
AC current output 11A
Efficiency 90%
Output Voltage 230V AC+/- 5%
Wave form Sinusoidal pure
Frequency 50z +/-0.05 (crystal controlled)
Idle Consumption < 1,5 watt
Made in USA



  >>>back to top







 4. Series inverter/charger      PS



The perfect choice for a virtually invisible, whole home backup power system, the PS Inverter/Charger delivers dependable sine wave power at a mid-range price.

The 2.5 kW inverter is available in 12 and 24-volt models and includes a fully automatic three-stage battery charger. This cost-effective inverter/charger also allows you to choose optional features that suit your needs and budget. If you want your generator to start automatically, add the optional GSM and SWRC.



Features

  • 2500 watts of continuous power

  • Utility grade, sine wave power

  • Quiet, high-efficiency operation

  • Three-stage battery charging system (bulk, absorption, and float) with automatic temperature compensation ensures your batteries are properly maintained

  • Surge capacity of 2.5 times peak power rating starts even the most demanding loads

  • Low power consumption (preserves battery capacity)

  • Low battery, overload, and overcharge protection circuitry

  • Seamless transfer switching (grid / generator to battery and battery to grid / generator)

Options

  • Optional SWRC remote allows expanded programming capacity

  • Optional Generator Start Module (GSM) supports automatic generator start and stop

  • Stackable design for 120/240 VAC, three-wire, 60 Hz power applications.





Product Code Model Power (W) Nominal Voltage Current DC max
LPI00057 PS2212E 2500 12 240
LPI00058 PS2524E 2500 24 140
General Specification



Temperature 0C - 40C
Weight 36,4Kg
Dimensions (H x W x D) 38.7 x 57.1 x 16.6 cm
Mounting wall or rack
Warranty 2 years
Electrical Specifications



AC Voltage input 230V AC
Current input via switch 15 - 30 A
AC Voltage output  220V adjustable +/- 5%
AC current output 9,5A
Efficiency 90%
Wave form Sinusoidal
Frequency 50z
Idle Consumption < 20 watt
Made in USA



  >>>back to top

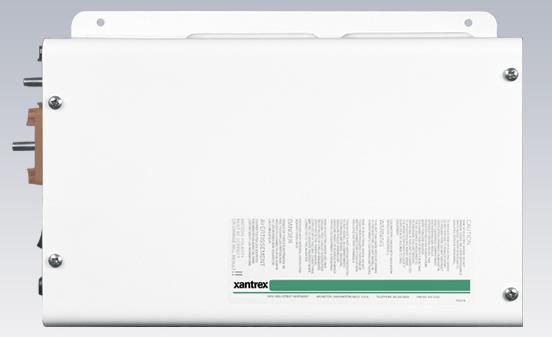

5. Series  inverter UX



Combining ultra-high efficiency and economy, the new Trace UX Series inverter is ideal for home, office, light industrial and remote power applications of between 500 and 1400 watts. And you'll find plenty of options in the world's most dependable power inverter.



  • Ah, the convenience. The UX lets you quietly run almost any AC equipment from your batteries--hand tools, microwaves, TVs, computers, even energy-hungry small refrigerators.

  • Efficiency frees more power. The UX will start loads that surge up to triple the continuous rating, and run a load of twice rated current for nearly a minute. It also makes the most of battery power with efficiencies of up to 92%. Under no-load conditions it consumes a miserly 1/2 watt.

  • Automatic, worry-free operation. Plug into utility power or start a generator and the UX instantly transfers power to your electrical system as it rapidly charges your batteries.

  • Maximum charging. The UX never overcharges or overheats batteries and maintains a full charge indefinitely as it ensures longer life in both sealed and liquid lead acid batteries.

  • Quick reactions. If your AC power fails, the SB model switches over within 16 milliseconds to keep lights, phones, appliances and most computers on line. A crystal-controlled voltage and frequency circuit protects appliances, as well.

  • Smart protection. In the inverter mode, UX "smart" protection circuitry delivers all the energy your batteries can safely provide, then automatically shuts down to prevent over-discharge.

  • More options, more flex. Remote Control (RC-8/50 or RC-8/100) mounts up to 100 feet away. SB model option provides automatic battery charging and AC transfer switch. Battery Temperature Sensor (BTS) automatically controls accurate charge to batteries.



Product Code Model Power (W) Nominal Voltage (V) Current DC max (A) Weight (Kg)
LPI00059 UX512E 500 12 41,7 11,8
LPI00060 UX512ESB 500 12 41,7 11,8
LPI00061 UX11112E 1100 12 91,7 13,6
LPI00062 UX11112ESB 1100 12 91,7 13,6
General Specification



Temperature 0C - 25C
Dimensions (H x W x D) 15.2 x 26 x 39.4 cm
Mounting Wall or rack
Warranty 2 years
  Electrical Specification



AC Voltage input 230V AC
Max Charge Rate (adjust) 25A/50A (SB only)
AC Voltage output  220V adjustable +/- 5%
AC current output 2A/4.8A
Efficiency 92%
Wave form Sinusoidal Modified
Frequency 50z
Idle Consumption < 5 watt
Made in USA





  >>>back to top
