Charger FRARON - AC/DC



The chargers are devices that converts AC current into DC current and controlling the charging process.

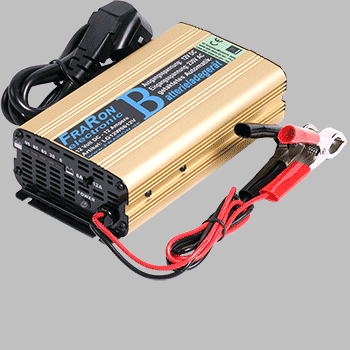

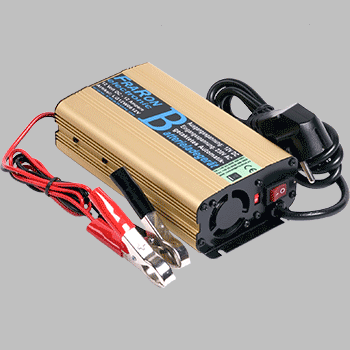

1. Series FRLG12





Type FRLG 12/12
Cod Produs LPC00072
Tensiune baterie (Vdc) 12
Tensiune de intrare (Vac) 110-230
Tensiune de incarcare (boost) 14.4
Tensiune de incarcare (float) 13.8
Curent Iesire (Amp.) 6
Racire Fan
Numar iesiri 1
Frecventa de lucru 47-63 Hz
Randament > 85 %
Temperatura de lucru -25 to 50°C
Dimensiuni lxwxh (mm) 155x80x36
Greutate (kg) 0.9
Capacitatea recomandata a bateriei max 120 Ah
Switch over current (A) 0.17-0.23
Siguranta secundara (A) 7.5
Garantie 2 ani
