Battery Charger STUDER - AC/DC



The long experience we have in the nautical field has given us the ability to evolve the range of MBC

battery chargers, now called MBC BATTERY CHARGER, with superior performance to those currently on the

market. The high level of performance of the MBC BATTERY CHARGER gives a charge to the batteries which

is both fast and safe.



Other important advantages which the MBC BATTERY CHARGER battery chargers offer, are:

• Three stage IUoU battery charging.

• Multiple outputs in order to charge more groups of batteries (internal battery isolator diodes).

• Charge selector for liquid/gel electrolyte batteries.

• Low residual fluctuation on output (ripple lower than 30 mV RMS).

• Compatible with every kind of generator.

• Short circuit, overloading, output over voltage and overheating protection.

• Can work in a wide range of ambient temperatures.



1. Seria  MBC

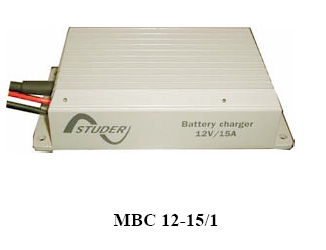

Type MBC 12-06/1 MBC 12-15/1 MBC 24-03/1 MBC 24-08/1
Cod Produs
Tensiune baterie (Vdc) 12 12 24 24
Tensiune de intrare (Vac) 100-260 100-260 100-260 100-260
Tensiune de incarcare (boost) 14.4 14.4 28.8 28.8
Tensiune de incarcare (float) 13.8 13.8 27.6 27.6
Curent Iesire (Amp.) 6 15 3 8
Racire Heat sink Heat sink Heat sink Heat sink
Numar iesiri 1 1 1 1
Frecventa de lucru 40-60 Hz 40-60 Hz 40-60 Hz 40-60 Hz
Randament > 85 % > 85 % > 85 % > 85 %
Temperatura de lucru -25 to 50°C -25 to 50° -25 to 50°C -25 to 50°C
Dimensiuni lxwxh (mm) 155x80x36 195x100x47 155x80x36 195x100x46
Greutate (kg) 0.9 1.8 0.9 1.8
Capacitatea recomandata a bateriei 18-60 Ah 45-150 Ah 9-30 Ah 24-80 Ah
Switch over current (A) 0.17-0.23 0.68-0.92 0.17-0.23 0.34-0.46
Siguranta secundara (A) 7.5 20 7.5 15
Garantie 2 ani



  >>>back to top

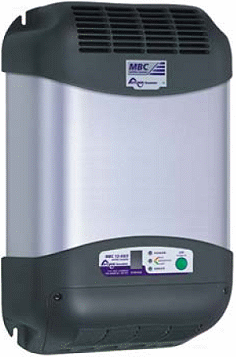

Type MBC 12-08/2 MBC 12-12/2 MBC 12-25/3 MBC 12-30/3 MBC 12-40/3 MBC 12-60/3
Cod Produs LPC00057 LPC00058 LPC00059 LPC00060 LPC00061 LPC00062
Tensiune baterie (Vdc) 12 12 12 12 12 12
Tensiune de intrare (Vac) 115-230 115-230 115-230 83-280 83-280 83-280
Tensiune de incarcare (boost)* 14.1 (14.4*) 14.1 (14.4*) 14.1 (14.4*) 14.1 (14.4*) 14.1 (14.4*) 14.1 (14.4*)
Tensiune de incarcare (float)* 13.5 (13.8*) 13.5 (13.8*) 13.5 (13.8*) 13.5 (13.8*) 13.5 (13.8*) 13.5 (13.8*)
Curent Iesire (Amp.) 8 12 25 30 40 60
Racire Natural Fan Fan Fan Fan Fan
Numar iesiri 2 2 3 3 3 3
Frecventa de lucru 45-66 Hz 45-66 Hz 45-66 Hz 45-66 Hz 45-66 Hz 45-66 Hz
Temperatura de lucru -20 to +70°C -20 to +70°C -20 to +70°C -20 to +70°C -20 to +70°C -20 to +70°C
Dimensiuni lxwxh (mm) 155x205x75 155x205x75 155x268x75 272x334x127 272x334x127 272x412x127
Greutate (kg) 1.3 1.4 2.3 4.2 4.2 5.4
Garantie 2 ani
* GEL batteries



 >>>back to top





Type MBC 12-80/3 MBC 24-12/2 MBC 24-30/3 MBC 24-60/3 MBC 24-80/3
Cod Produs LPC00063 LPC00064 LPC00065 LPC00066 LPC00067
Tensiune baterie (Vdc) 12 24 24 24 24
Tensiune de intrare (Vac) 83-280 115-230 83-280 150-280 150-280
Tensiune de incarcare (boost)* 14.1 (14.4*) 28.2 (28.8*) 28.2 (28.8*) 28.2 (28.8*) 28.2 (28.8*)
Tensiune de incarcare (float)* 13.5 (13.8*) 27.0 (27.6*) 27.0 (27.6*) 27.0 (27.6*) 27.0 (27.6*)
Curent Iesire (Amp.) 80 12 30 60 80
Racire Fan Fan Fan Fan Fan
Numar iesiri 3 2 3 3 3
Frecventa de lucru 45-66 Hz 45-66 Hz 45-66 Hz 45-66 Hz 45-66 Hz
Temperatura de lucru -20 to +70°C -20 to +70°C -20 to +70° -20 to +70°C -20 to +70°C
Dimensiuni lxwxh (mm) 272x495x127 155x268x75 272x412x127 272x495x127 272x495x127
Greutate (kg) 7.1 2.3 5.4 7.1 7.1
Garantie 2 ani
* GEL batteries



  >>>back to top
