Compact integrate PV-pack systems





1. PV-Packs compact



The PV-Packs are complete, integrated packages ideal as portable power packs to supply small loads in locations remote from the power grid. The PV-Pack Mark 10 is a mobile and flexible power supply to be used for fieldwork and leisure time activities.

They are ideal for powering a variety of equipment such as:

Laptop computers, DVD, CD, radios and cassette players, mobile and satellite telephones, energy efficient lighting, etc. Save and simple installation through "Plug and Play" connections. Reliable operation using selected high quality components from leading manufacturers





  Product Code LPP00001
Model Mark 5
 Steca
1 x ASI module 5W ,
1 x PSHS 7 portable power pack
1 x Solsum energy saving lamp 5W/12V
1 x adapter cable with E27 fitting included
1 x pack module installation clamps ( 4 pcs.)
 Germania



  Product Code LPP00002

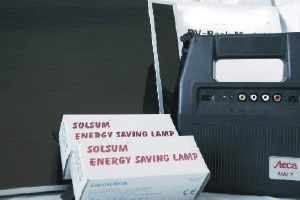

Model Mark 10
 Steca
2 x ASI module 5W ,
1 x PSHS 7 portable power pack
2 x Solsum energy saving lamp 7W/12V
2 x adapter cable with E27 fitting included
2 x pack module installation clamps ( 4 pcs.)
 Germania



2. PV-Power-Packs SHS



The PV-Power-Packs are complete solar home systems (SHS). Solar Home Systems are the ideal system to cover the basic needs of the population in remote areas by producing the energy for lighting. The SHS improve the living standards of the rural population.



  Product Code

LPP00003

Model

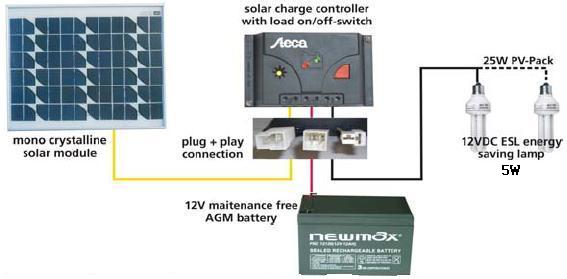

PV-pack 10W


1 x USP module 10W incl. 5m cable
1 x PR 0303 solar charge controller,
1 x Solsum energy saving lamp 5W/12V white
1 x adapter cable with E27 fitting,
1 x Newmax 12Ah AGM battery
2m H07RNF 2 x 2,5 mm cable included



  Product Code

LPP00004

Model

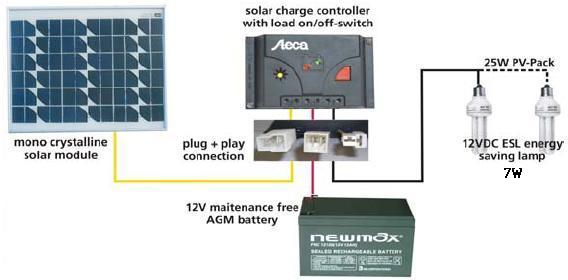

PV-pack 25W


1 x USP 25W module incl. 5 m cable
1 x PR 0303 solar charge controller,
2 x Solsum energy saving lamp 7W/12V white
2 x adapter cable with E27 fitting,
1 x Newmax 30Ah AGM battery
2m H07RNF 2 x 2,5 mm cable incl.



  Product Code

LPP00005

Model

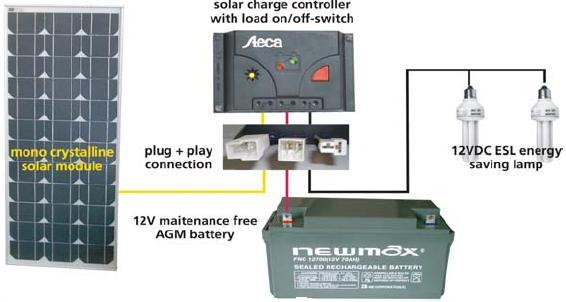

PV-pack 50W


1 x USP 50W module incl. 5 m cable
1 x PR 0303 solar charge controller,
2 x Solsum energy saving lamp 7W/12V white
2 x adapter cable with E27 fitting,
1 x Newmax 30Ah AGM battery
2m H07RNF 2 x 2,5 mm cable incl.





  Product Code

LPP00006

Model

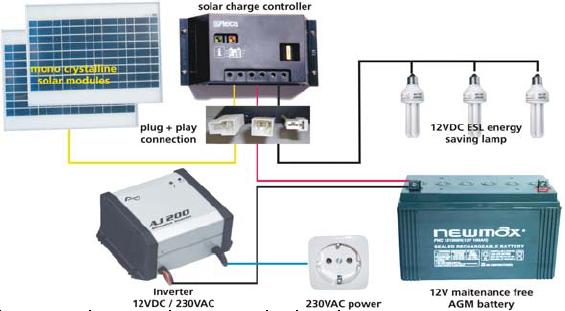

PV-pack 75W

2 x USP 37W module incl. 5 m cable
1 x Steca Gamma solar charge controller,
1 x Studer AJ 201 sinus inverter 12V/230V
3 x Solsum energy saving lamp 7W/12V white
3 x 5m adapter cable with E27 fitting,
1 x Newmax 100Ah AGM battery
2m H07RNF 2 x 2,5 mm cable incl.




  Product Code

LPP00007

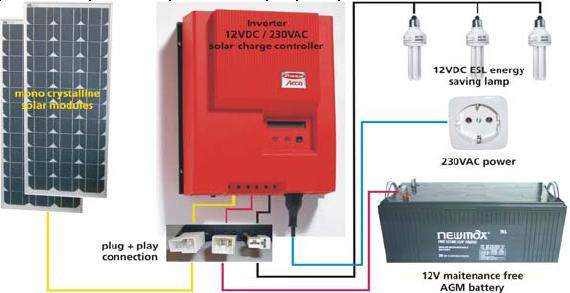

Model PV-pack 100W

2 x USP 50W module incl. 5 m cable
1 x Steca Sinus 400 RI 12V/230V
3 x Solsum energy saving lamp 11W/12V
3 x 5m adapter cable with E27 fitting,
1 x Newmax 150Ah AGM battery
2m H07RNF 2 x 2,5 mm cable incl.
