Baterii de acumulatori Newmax







 1. Seria  PNB



Bateriile Newmax ( Sealed Rechargeable Lead-Acid Batteries)  sunt o alternativa viabila si in acelasi timp o solutie cu pret redus, care pot fi utilizate in sisteme de energie alternativa. Aceste baterii au o durata de viata intre 4 ani si 6,5 ani. Aplicatile tipice :

  • sisteme UPS

  • panouri de semnalizare si informatii

  • sisteme medicale

  • sisteme telefonice de urgenta

  • alte echipamente

  Sunt concepute pentru o utilizare cu grad de descarcare de 80%.







Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

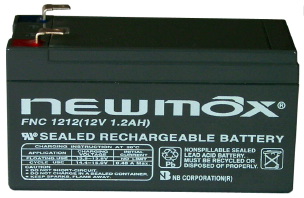

LPB00060 PNB 1212 12 1,2 C20 97 47,5 56 0,57

 <<<  Descarca documentul tehnic


Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

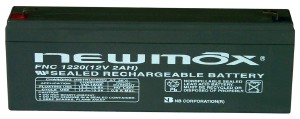

LPB00061 PNB 1220 12 2 C20 178 34 65 0,83



 <<<  Descarca documentul tehnic



Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

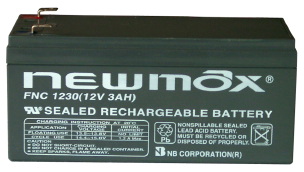

LPB00062 PNB 1230 12 3 C20 134 67 65 1,3



 <<<  Descarca documentul tehnic



Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

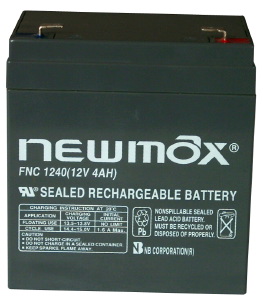

LPB00063 PNB 1240 12 4 C20 94 70 105 1,63

 <<<  Descarca documentul tehnic




Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00067 PNB 12190 12 19 C20 180 75 167 6,5

 <<<  Descarca documentul tehnic


Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00068 PNB 12210 12 21 C20 192 116 144 7,8



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00069 PNB 12260 12 26 C20 165 175 126 8,7



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00070 PNB 12300 12 30 C20 165 125 180 10,5



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00071 PNB 12340 12 34 C20 196 130 178 11,5



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

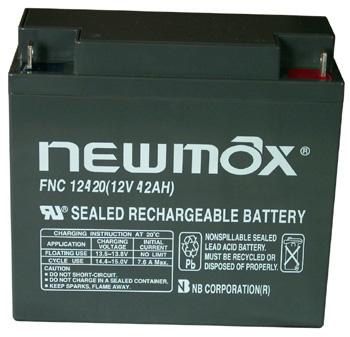

LPB00072 PNB 12420 12 42 C20 197 166 174 15,1



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

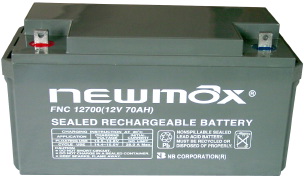

LPB00073 PNB 12700 12 70 C20 350 166 175 23,7



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

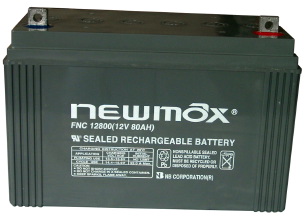

LPB00074 PNB 12800 12 80 C20 342 174 239 33,7



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00075 PNB 121000H 12 100 C20 342 174 239 35



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)
LPB00076 PNB 121200 12 120 C20 500 260 225 44



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

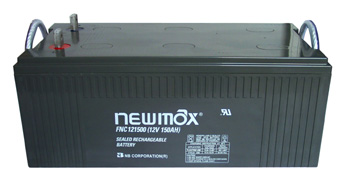

LPB00077 PNB 121500 12 150 C20 500 260 225 55



 <<<  Descarca documentul tehnic

Product Code Model Voltage (V) Capacity (Ah) N Length (mm) Width (mm) Height (mm) Weight (Kg)

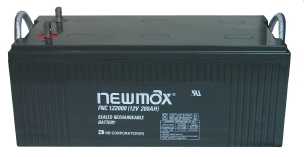

LPB00078 PNB 122000 12 200 C20 500 260 225 68



 <<<  Descarca documentul tehnic



  >>>back to top



 2.Seria PNGB







Product Code Model Voltage (V) Capacity (Ah) N Weight (Kg)
LPB00079 PNGB 21000 2 100 C10 9
LPB00080 PNGB 21200 2 120 C10 11
LPB00081 PNGB 21500 2 150 C10 13
LPB00082 PNGB 22000 2 200 C10 16
LPB00083 PNGB 22500 2 250 C10 20
LPB00084 PNGB 23000 2 300 C10 23
LPB00085 PNGB 24000 2 400 C10 29
LPB00086 PNGB 25000 2 500 C10 38
LPB00087 PNGB 26000 2 600 C10 44
LPB00088 PNGB 27000 2 700 C10 51
LPB00089 PNGB 28000 2 800 C10 56
LPB00090 PNGB 29000 2 900 C10 68
LPB00091 PNGB 210000 2 1000 C10 73
LPB00092 PNGB 212000 2 1200 C10 75









Product Code LPB00110 LPB00111 LPB00112 LPB00113 LPB00114

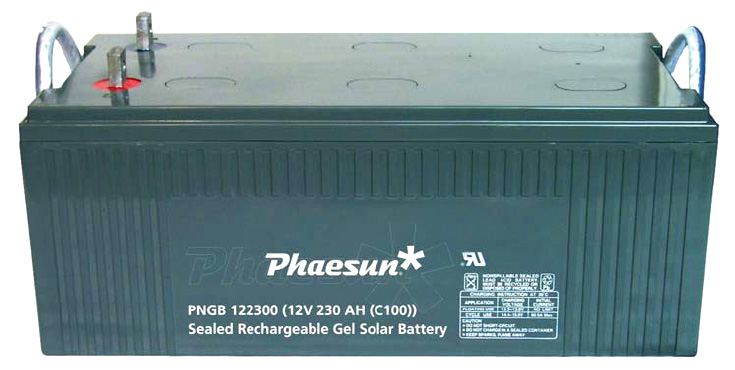

Electrical Parameters PS PNGB 12900 PS PNGB 121100 PS PNGB 121400 PS PNGB 121800 PS PNGB 122300
Nominal Voltage [V] 12 12 12 12 12
Nominal Capacity C100(100H at 25°C) [Ah] 90 105 140 180 230
Nominal Capacity C10(10H at 25°C) [Ah] 80 100 130 150 200
Capacity Affected by Temperature 30 °C: 105%,    25°C: 103%,    10°C: 95%,    -10°C: 78%
Maximum Discharge Current [A] 320 400 500 600 800
Weight Efficiency (10hr rate) [Wh/kg] 28.5 34.29   32.72 35.29
Volume Efficiency (10hr rate) [Wh/L] 81.1 86.21   61,53 82.05
Max. Short-Duration Discharge Current [A] 1440 2000   2700 3600
Housing Material (Container/Cover) ABS resin or optional flame retardant (UL94-Vo/L.O.I over 29)
Hardware M8 x L25 or optional 3/8 x L25(30) Bolt/Nut
Elektrolyte Fixed in AGM separator
Constant Voltage Charge Stand-by Use Voltage 13.50 ~ 13,80V (C°20) Max. current No limit
Constant Voltage Charge Cyclic Use Voltage 14,40 ~ 15,00V (C°20)
Max. current by Cyclic Use [A] 32A 40A 50A 60A 80A
Life Expectancy Stand-by Use (20°C) [Years] 7~10
Life Expectancy Cyclic Use 100% DOD 260 cyle, 50% DOD 600 cycle, 30% DOD 1200 cycle
Weight [kg] 33,7 35 44 55 68
Dimensions (l*w*h) [mm] 332x174x239 332x174x239 500x180x224 500x260x225 500x260x225
Terminal Type C

  >>>back to top
