| Convertoare-
DC/DC |
|
|
Convertoarele
sunt dispozitive care fac conversia curent continuu (DC) in
curent continuu (DC).
|
| |
| 1.

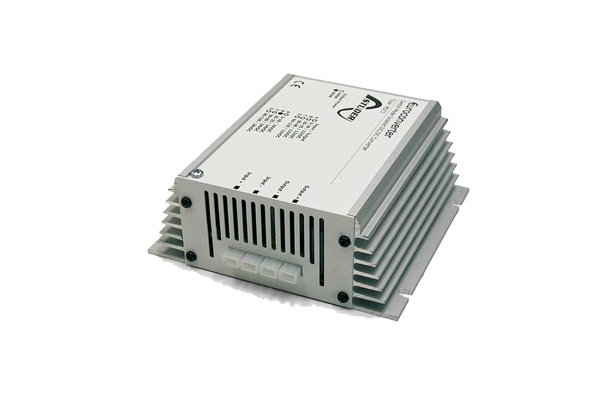

Seria MDCI |
| MDCI – dc/dc converters, switch-mode, isolated150W |
| |
|
|
|

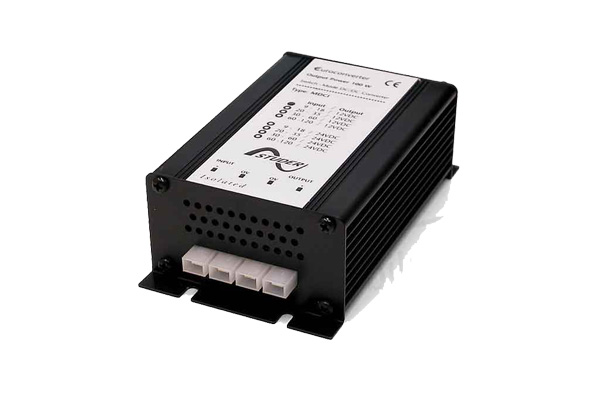

Fotografie
(click pentru marire)
|
|
|
| Model |
Studer
MDCI 100 |
Studer
MDCI 200 |
Studer
MDCI 360 |
Studer
MDCI 360i |
|
LPC00045 |
LPC00046 |
LPC00047 |
LPC00048 |
| Power (W) |
100 |
200 |
360 |
330 |
| Input
variants (Vdc) |
A-B-C-D |
A-B-C-D |
A-B-C-D |
A |
| Output variants (Vdc/Amp)
± 2 |
12.5/8-24/4 |
12.5/16-24/8 |
12.5/30-24/15 |
27,6/12 |
| Galvanic isolation |
YES |
YES |
YES |
YES |
| Isolation voltage (V) |
400 |
400 |
400 |
400 |
| Efficiency @ full load
(%) |
±
85 |
±
85 |
±
85 |
±
85 |
| Off-load current (mA) |
<
25 |
<
25 |
<
25 |
<
25 |
| Operating temperature (°C) |
-20
/ +45 |
-20
/ +45 |
-20
/ +45 |
-20
/ +45 |
| Ambiant
temp. (20°) increase after 30 minutes @ full load (°C) |
25 |
30 |
30 |
30 |
| Cooling |
Convection |
Fan |
Fan |
Fan |
| Dimensions HxWxD (mm) |
49x88x152 |
49x88x182 |
64x163x160 |
64x163x160 |
| Weight (gr) |
500 |
600 |
1400 |
1400 |
|
MDCI
100 |
MDCI
200 |
MDCI
360 |
MDCI
360 Charger |
|
| Option
available: |
A
= 9-18 Vdc |
B
= 20-35 Vdc |
C
= 30-60 Vdc |
D
= 60-120 Vdc |
|
|
|
<<<<
Datasheet
|
|
|
|
|
| >>>back to
top
|
| |
|

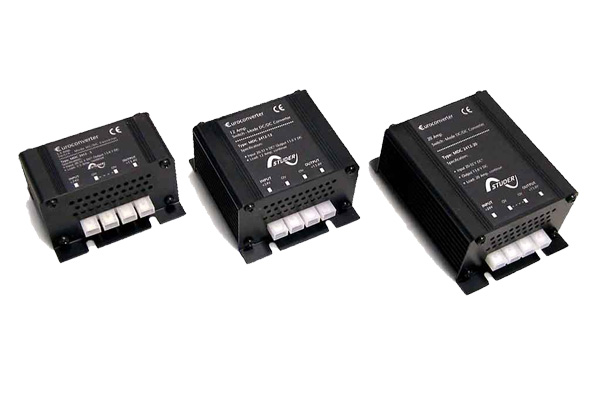

2.Seria
MDC
|
| MDC – dc/dc converters, switch-mode, non isolated |
| |
|
|
| Model |
Studer
MDC 1224-7 |
Studer
MDC 2412-5 |
Studer
MDC 2412-8 |
Studer
MDC 2412-12 |
Studer
MDC 2412-20 |
Studer
MDC 2412-30 |
|
LPC00049 |
LPC00050 |
LPC00051 |
LPC00052 |
LPC00053 |
LPC00054 |
| Current
(A) |
7 |
5.5 |
8 |
12 |
20 |
30 |
| Input
(Vdc) |
9-18 |
18-35 |
18-35 |
20-35 |
20-35 |
20-35 |
| Output
(Vdc) |
24 |
13.2 |
13.2 |
13.2 |
13.8 |
13.8 |
| Efficiency
@ full load (%) |
90 |
90 |
90 |
90 |
90 |
90 |
| Off-load
current (mA) |
< 15 |
< 5 |
< 5 |
< 5 |
25 |
25 |
| Operating
temperature (°C) |
-20 /
+40 |
-20 /
+40 |
-20 /
+40 |
-20 /
+40 |
-20 /
+40 |
-20 /
+40 |
| Ambiant
temp. (20°) increase minutes @ full load (°C) |
30 |
30 |
20 |
30 |
33 |
33 |
| Cooling |
Convection |
Convection |
Convection |
Convection |
Convection |
Fan |
| Dimensions
HxWxD (mm) |
49x88x98 |
49x88x68 |
49x98x88 |
49x98x88 |
49x88x126 |
49x88x151 |
| Weight
(gr) |
300 |
170 |
250 |
260 |
480 |
600 |
|
| |
|
>>>back to top
|
|
|
|
|
|
|
)
)
