Invertoare - Made in USA



Invertoarele sunt dispozitive care fac conversia curentului continu DC in curent alternativ AC asigurand calitatea frecventei la 50Hz, deci ele fac conversia tensiunii de 12V, 24V sau 48 V, provenita de la baterii, in tensiune 220Vca. In general exista  doua tipuri de invertoare:



-  cu unda perfect sinusoidata (perfomante mult superioare in comparatie cu reteaua conventionala de energie)

-  cu unda sinusoidala modificata (unda este alternativa dar nu este sinusoidala, sunt mai ieftine )



Aplicatie sistem energie de rezerva

Aplicatie sistem telecom

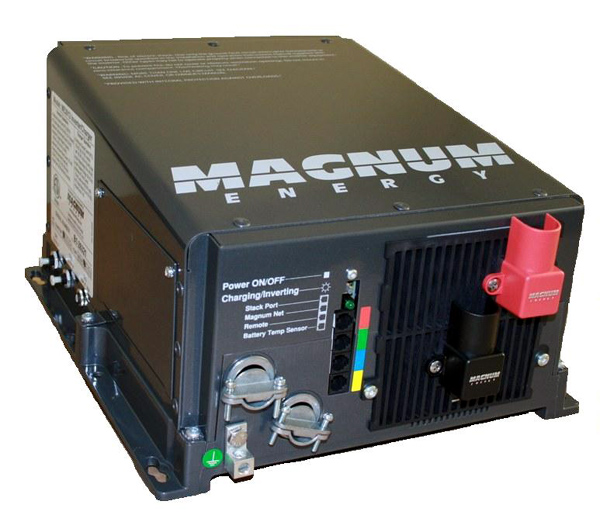

MAGNUM ENERGY a adus o noua generatie de invertoare/charger pentru sistemele off-grid ( sisteme autonome) si sisteme de backup. Sistemele pot functiona impreuna cu diverse surse si generatoare de energie alternativa (solara, eoliana si hidro) furnizat energia electrica la un nivel foarte inalt de calitate.



Facilitati

  • Curent electric superior celui furnizat din retea cu forma de unda sinusoidala pura sau unda modificata

  • Incarcare in 3 trepte ( incarcare in plin , absortie, incarcare de mentinere ) si egalizare de baterie. Avand sensor extern de temperatura pentru cresterea performantelor.

  • Modul de control programabil cu display LCD si indicatoare LED

  • Control integrat a pornirii pentru generatoare cu 1 si 3 faze

  • XanBus-enabled network communication

  • Configuartie in 3-faze disponibila pentru aplicatii industriale.

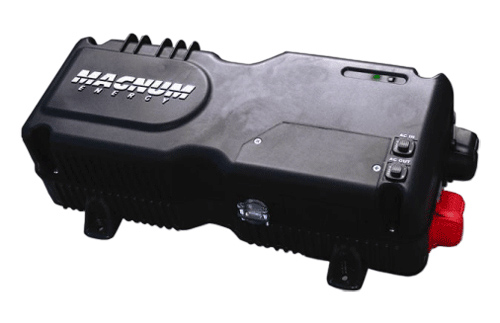

1. Seria  invertoare/charger  MM-E  - unda modificata





COD PRODUS LPI00400 LPI00401
MODEL Magnum MM1012E Magnum MM1324E
Continuous output power 1000VA 1300VA
Surge rating 30 min 1180 W 1650 W
Surge rating 5 min 1350 W 1850 W
Surge rating 5 sec 1750 W 2600 W
Surge current AC 1ms 21 A rms 42 A rms
Waveform Modified Sine Wave Modified Sine Wave
Peak efficiency 87 % 87 %
Idle consumption - search mode < 6 W < 6 W
AC output voltage 230 Vac +/- 3% 230 Vac +/- 3%
Maximum AC pass through current 22 A 22 A
DC current at rated power 50 A 40 A
DC input voltage range 9 to 16 V 18 to 32 V
Continuous charge rate 50 A 40 A
Descarca datasheet



2. Seria  invertoare/charger   - MM - unda sinusoidala pura



COD PRODUS LPI00404
MODEL Magnum MMS912E
Continuous output power 900 VA
Surge rating 5sec 1600 W
Surge current AC 1ms 30 A rms
Waveform True sine wave
Peak efficiency 87,00%
Idle consumption - search mode < 7 W
AC connections AC1 (grid), AC2 (generator)
AC input voltage range (bypass/charge mode) 156 to 280 Vac (230 V nominal)
AC input frequency range (bypass/charge mode) 40 to 68 Hz (50 Hz nominal)
AC output voltage 230 Vac +/- 3%
Maximum AC pass through current 56 A
AC output continuous current 17,4 A
AC output frequency 50 Hz +/- 0,1 Hz
Total harmonic distortion < 5% at rated power
Typical transfer time 20 ms
DC current at rated power 40 A
DC input voltage range 10 to 17 V
Continuous charge rate 40 A

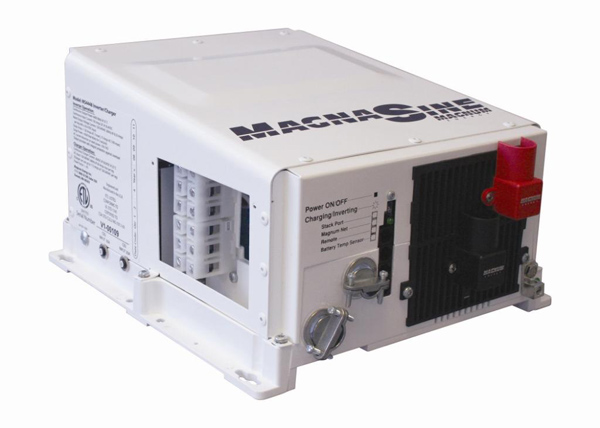

3. Seria  invertoare/charger   - MS - unda sinusoidala pura



COD PRODUS LPI00405 LPI00406 LPI00409
MODEL Magnum MS1512E Magnum MS2712E Magnum MM4124E
Continuous output power 1500VA 2700VA 4100VA
Surge rating 30 min 1800 W 3500 W 4600 W
Surge rating 5 min 2200 W 3600 W 4750 W
Surge rating 5 sec 3100 W 4100 W 6300 W
Surge current AC 1ms 40 A rms 45 A rms 65 A rms
Waveform Pure Sine Wave Pure Sine Wave Pure Sine Wave
Peak efficiency 87 % 87 % 87 %
Idle consumption - search mode < 8 W < 9 W < 9 W
AC output voltage 230 Vac +/- 3% 230 Vac +/- 3% 230 Vac +/- 3%
Maximum AC pass through current 22 A 22 A 22 A

DC input voltage range 9 to 16 V 9 to 17 V 18 to 34 V
Continuous charge rate 75 A 125 A 125 A



COD PRODUS LPI00407 LPI00408
MODEL Magnum MS4124PE Magnum MS4348PE
Continuous output power 4100VA 4300VA
Surge rating 30 min 4600 W 5000 W
Surge rating 5 min 4750 W 6600 W
Surge rating 5 sec 6300 W 7500 W
Surge current AC 1ms 65 A rms 75 A rms
Waveform Pure Sine Wave Pure Sine Wave
Peak efficiency 90 % 91 %
Idle consumption - search mode < 9 W < 10 W
AC output voltage 230 Vac +/- 3% 230 Vac +/- 3%
Maximum AC pass through current 22 A 22 A
DC current at rated power 50 A 40 A
DC input voltage range 18 to 34 V 36 to 64 V
Continuous charge rate 50 A 40 A



 3. Seria  invertoare/charger   -  RD - unda sinus modificata





COD PRODUS LPI00402 LPI00403
MODEL Magnum RD2624E Magnum RD4024E
Continuous output power 2600VA 4000VA
Surge rating 30 min 2700 W 5500 W
Surge rating 5 min 3350 W 6000 W
Surge rating 5 sec 4700 W 7500 W
Surge current AC 1ms 85 A rms 100 A rms
Waveform Modified Sine Wave Modified Sine Wave
Peak efficiency 87 % 87 %
Idle consumption - search mode < 6 W < 6 W
AC output voltage 230 Vac +/- 3% 230 Vac +/- 3%
Maximum AC pass through current 22 A 22 A
Transfer time 30 ms 20 ms
DC input voltage range 18 to 32 V 18 to 32 V
Continuous charge rate 75 A 105 A





3. Accesorii de comanda si programare - Magnum





 CodProdus Model Descriere

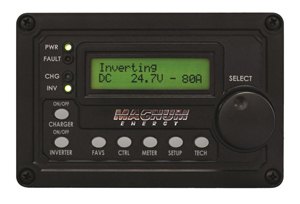

LPW00303 Magnum ME-RC50

 Interfata de programare externa cu interfata Ethernet

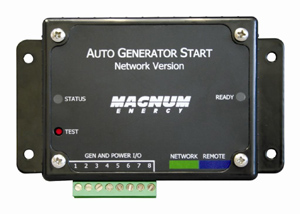

LPW00311 Magnum ME-AGS-N

Sistemul de activare grup electrogen, comandata via interfata Ethernet cu invertor Magnum- network

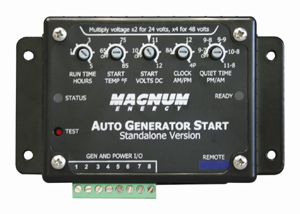

LPW00312 Magnum ME-AGS-S Sistemul de activare grup electrogen, comandata via interfata Ethernet fara invertor Magnum - stand alone

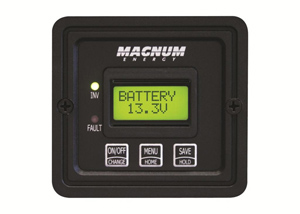

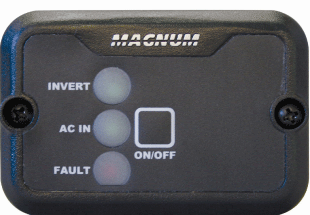

LPW00300 Display simplu Sistemul de monitorizare  pentru conectare si monitorizare
LPW00308 Magnum MM-R25

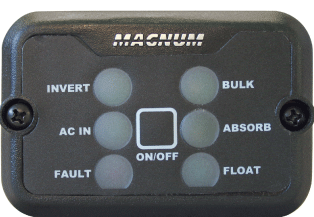

LPW00309 Magnum MM-RC25
