Senzori
de temperatura si umiditate
|
|
Senzorii
de mai jos sunt special construiti pentru compatibilitate
cu dispozitivele meteo
fabricate de Mierij Meteo.
|
|
1.
Senzori Temperatura
Acesti
senzori sunt destinati pentru masuarea:
-
Temperatura
aerului (in camp deschiz fara umbra sau cu umbra)
-

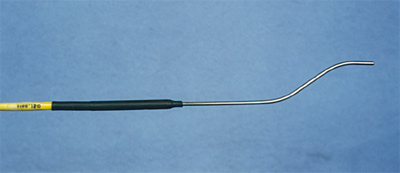

Temperatura
asfalt ( drumuri publice si private)
-
Temperatura
solului ( pentru aplicatii diverse inclusiv agrigultura)
Modele disponibile:
-
Temperature-sensitive
resistors (NTC/PTC)
-
Temperature-
dependent ICs
-
Thermocouples
-
Temperature
sensors according to customers requirements
|
|
| Model |
Cod
Produs |
Descriere |

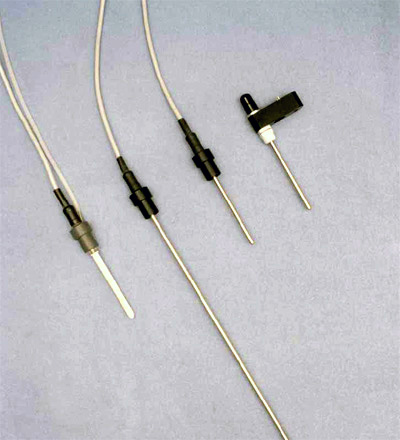

| 811 |
LPX00019 |
Senzor
temperatura PT-100-1/3
811 |
| 812 |
LPX00020 |
Senzor
temperatura PT-100-1/5
812 |
 |
Model
dry bulb (3-wire) |
| Accuracy:
1/5 DIN-43760, class B |
| Resistance
at 0°C: 100 Ohm |
| Supplied
with 2 meter PUR CY cable |
|
| Date
Tehnice >> |
|
|
|
| Model |
Cod
Produs |
Descriere
|

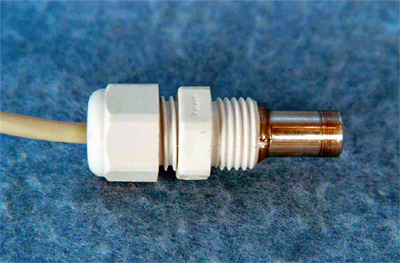

| 815 |
LPX00056 |
Senzor
temperatura 815 |
 |
|
| Date
Tehnice >> |
|
|
|
| Model |
Cod
Produs |
Descriere |

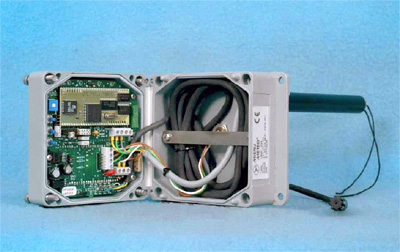

| 317XI |
LPX00021 |
Temp.
electronics unit with transmitter PT-100 |
|
For
temperature sensors model 811/812 |
| Supply
voltage 24VDC typical (8 - 30 VDC) |
| Output:
4-20 mA @ -30…+40 °C (other ranges available on
request) |
| With
mounting bracket 50 of 60 mm |
| Supplied
with 2 glands PG7 |
| Material:
polycarbonate 80x80x55mm |
|
|
| Date
Tehnice >> |
|
|
|
| Model |
Cod
Produs |
Descriere |
| 318XI |
LPX00022 |
High
Accuracy Temp. electronics unit with transmitter PT-100 |
|
For
temperature sensor type 811/812 |
| High
accuracy transmitter |
| Supply
voltage 24VDC typical (8 - 30 VDC) |
| Output:
4-20 mA @ -30…+40 °C (other ranges available on
request) |
| Accuracy:
± 0,01 FRI, ±0,05% rdg |
|
(FRI = Full
Range Input) |
| With
mounting bracket 50 of 60 mm |
| Supplied
with 2 glands PG7 |
| Material:
polycarbonate 80x80x55mm |
|
|
| Date
Tehnice >> |
|
|
|
|
|
|
|
>>>back to
top
|
|
2.
Senzori
de umiditate
Senzorii
de umiditate prezentati mai jos sunt special construiti pentru
asigurarea preciziei de masura:
|
|
| Model |
Cod
Produs |
Descriere |
| 263-TPW |
LPX00024 |
Temperature
/ Humidity sensor |
 |
Detachable
sensortip, white |
| Supply
Voltage 3,5…50 VDC / < 4 mA |
| Operating
range temperature: -40...+60°C,
± 0,3°C |
| Operating
range humidity: 0-100%, ± 1,5% |
| Output
signal temperature TT:
0...1V @ -40…+60°C |
| Output
signal humidity: 0…1V @ 0 - 100 %RV |
|
| Date
Tehnice >> |
|
|
|
| Model |
Cod
Produs |
Descriere |

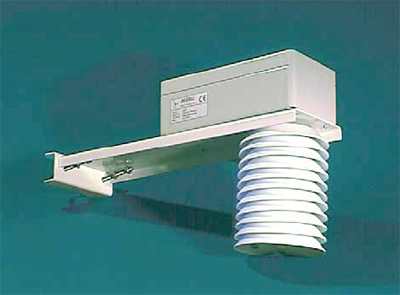

| 263-T |
LPX00023 |
Temperature
/ Humidity sensor, Industrial class |
|
Transmitter
with detachable Sensortip 263-TPW |
| Supply
voltage: 24 VDC / Vac |
| Operating
range temperature: -40...+60°C,
± 0,3°C |
| Operating
range humidity: 0-100%, ± 1,5% |
| Output
signal temperature: 4...20 mA @ -40…+60°C (standard) |
| Output
signal humidity: 4...20 mA @ 0 - 100 %RV (standard) |
| Other
ranges available on request |
| Model |
Cod
Produs |
Descriere |

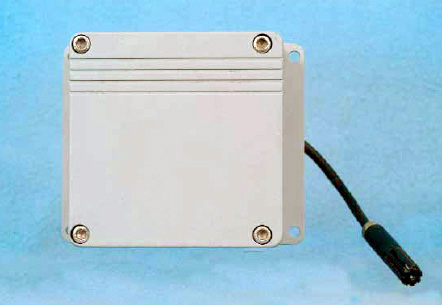

| 261 |
LPX00057 |
Senzor
umidiate 261 |
|
|
|
| Date
Tehnice >> |
|
|
|
| 263-CON2 |
LPX00025 |
Connector
for temperature/humidity sensor 263-TPW |
|
|
With 2 meter
cable |
|
| 263-CON5 |
LPX00026 |
Connector
for temperature/humidity sensor 263-TPW |
|
|
With 5 meter
cable |
|
|
|
|
>>>back to
top
|
|
2.
Sisteme
si incinte de protectie
Incintele
de protectie au urmatoarele functii de baza:
-
sa
asigute protectia senzorului la incidenta radiatiei solare
-
sa
asigure ventilarea aerului in jurul senzorului pentru o
masuratoare corecta
-
sa
asigure protectia la intemperii sau vant excesiv
|
|
| Model |
Cod
Produs |
Descriere |

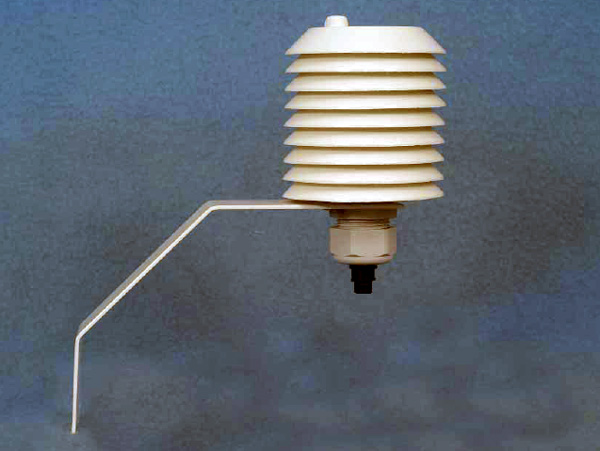

| 306 |
LPX00028 |
Radiation
shield |
 |
Diameter:
85 mm, height 80 mm (9 discs: 2 x closed, 7 x open) |
| Incl.
white coated mounting bracket |
| Gland
PG16/21 for mounting Sensortip (263-TPW) |
| Without
sensor |
|
| Date
Tehnice >> |
|
|
|
| Model |
Cod
Produs |
Descriere |

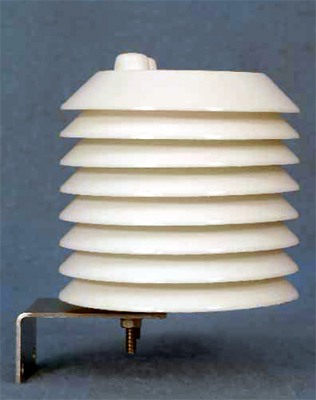

| 307-811 |
LPX00029 |
Radation
shield for temperature sensor type 811 |
|
|
Diameter:
85 mm, 10 discs: (2 x closed, 7 x open, 1 x small) |
| Gland
PG11 black for mounting temp.sensor 811 |
| With
stainless steel mounting bracket |
| Without
sensor |
|
| Date
Tehnice >> |
|
|
|
|
|
|
Incinta
de protectie tip 303 a,b,c
|
|
|
|
|
Incinta
de protectie tip 304
|
|
|
|
|
|
|
|
|
Incinta
de protectie tip 303 a,b,c
|
|
|
|
|
Sistem
de avertizare la aparitia ghetii
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
