Pompe Solare - pompa ecologica pentru apa

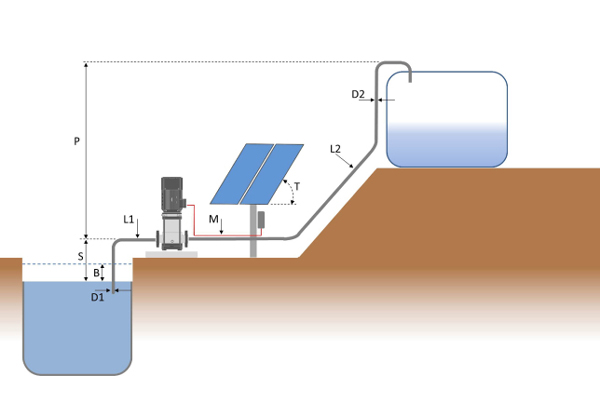

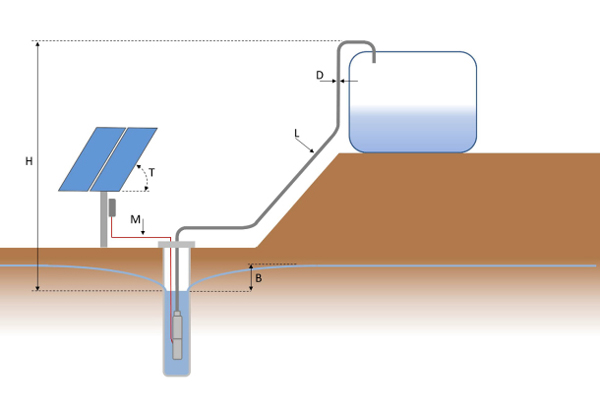

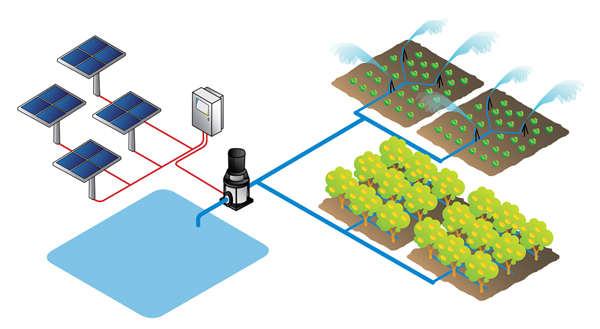

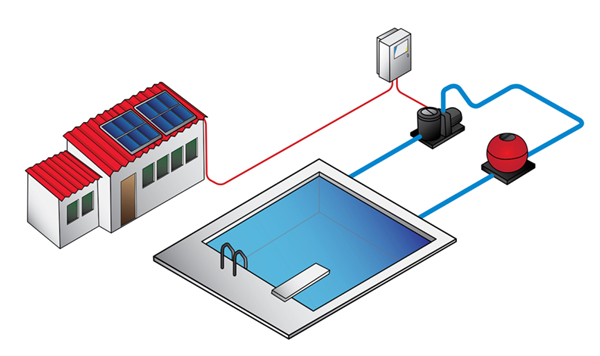

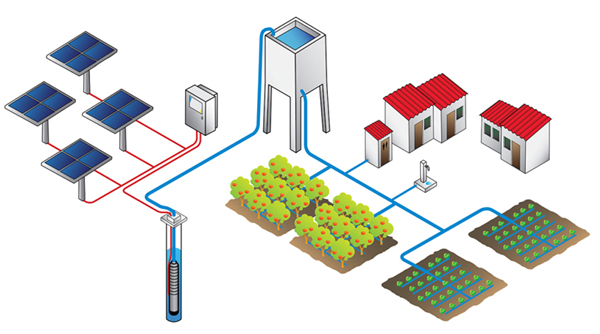

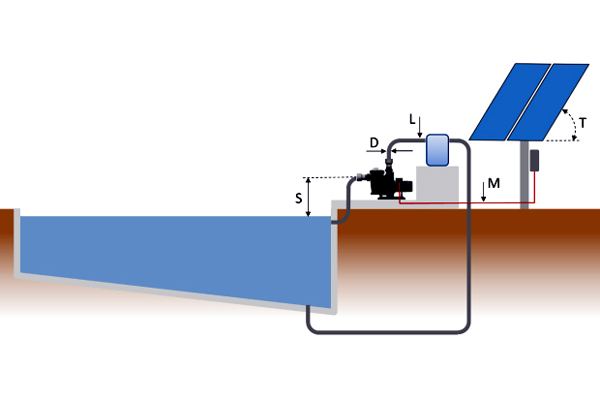

Aplicatie cu pompe de apa solare



1. Pompe solare - seria  Lorentz

 (click pe fiecare fotografie pentru marire)

Datasheet

PS150

C-SJ5-8

Model

LPP00057

lift [m]

0-22

max. flow rate [m3/h]

5.0

max. efficiency [%]

45

solar operation

nominal voltage 12-24 V DC
open circuit voltage max. 50 V DC

solar generator [Wp]

65-450

battery operation

nominal voltage 12-24 V DC



Overview

  • lift up to 22 m

  • flow rate up to 5.0 m3/h

  • charger for 12/24 V batteris and MPPT booster for solar-direct application included

  • simple installation

  • maintenance free

  • high reliability and life expectancy

  • cost-efficient pumping

  • 2 years manufacturer's warranty against defects in material and workmanship

Applications

  • drinking water supply

  • livestock watering

  • pond management

  • irrigation

  • etc.

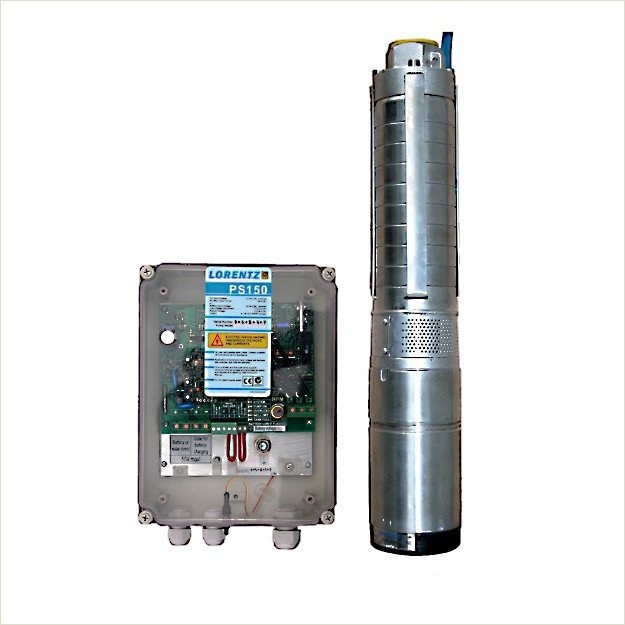

Controller PS150

  • controlling of the pump system and monitoring of the operating states

  • charge controller included

  • mounted at surface (no submerged electronic parts)

  • two control inputs for well probe (dry running protection), float or pressure switches, remote control etc.

  • automatic reset 20 minutes after well probe turns pump off

  • protected against reverse polarity, overload and high temperature

  • speed control, max. pump speed adjustable to reduce flow rate to approx. 30 %

  • solar operation: integrated MPPT (Maximum Power Point Tracking)

  • battery operation: low voltage disconnect and restart after battery has recovered

  • max. efficiency 88 % (motor + controller)

  • enclosure: IP 54 (sealed, weatherproof)

Motor ECDRIVE 200 C

  • brushless DC motor

  • water filled

  • dynamic slide bearings, material: carbon/ceramic

  • wetted material: stainless steel (AISI 316), POM, rubber, cable drinking water approved



Pump end (PE)

  • high life expectancy

  • none-return valve

  • dry running protection (optional)

  • material: stainless steel (AISI 316), rubber











Datasheet

PS200

HR-04

HR-07

HR-14

C-5-4

Model

LPP00028

LPP00029

LPP00030

LPP00031

lift [m]

0-50

0-30

0-20

0-15

max. flow rate [m3/h]

0.8

1.2

2.7

5.0

max. efficiency [%]

60

61

62

45

solar operation

nominal voltage 24-48 V DC
open circuit voltage max. 100 V DC

battery operation
only

solar generator [Wp]

80-300

80-300

80-300

battery operation

nominal voltage 24-48 V DC

Overview

  • lift up to 50 m

  • flow rate up to 2.7 m3/h (HR) resp. 5.0 m3/h (C)

  • simple installation

  • maintenance free

  • high reliability and life expectancy

  • cost-efficient pumping

  • 2 years manufacturer's warranty against defects in material and workmanship

Applications

  • drinking water supply

  • livestock watering

  • pond management

  • irrigation

  • etc.

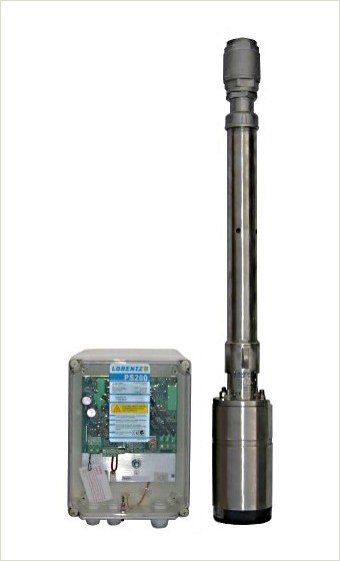

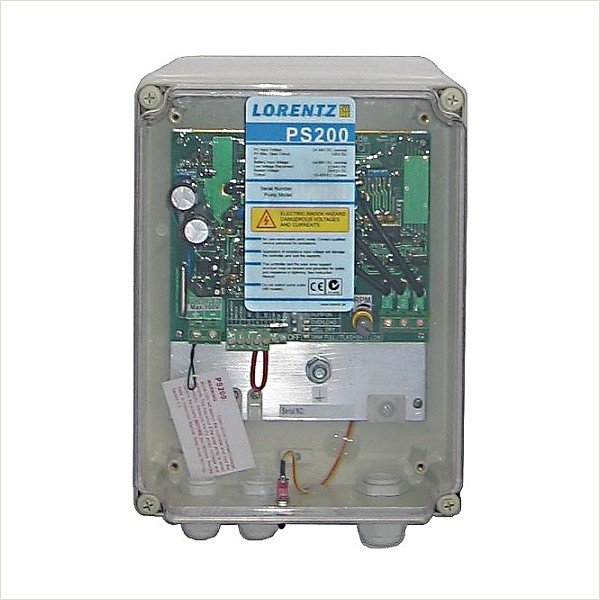

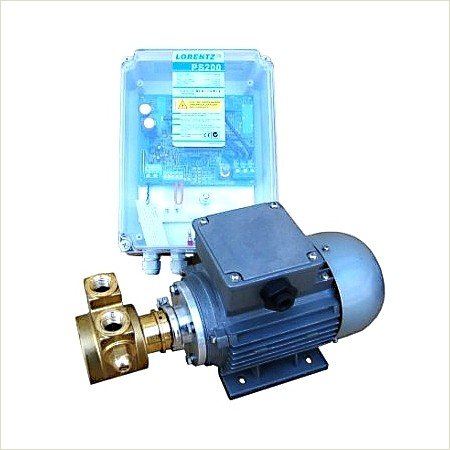

Controller PS200

  • controlling of the pump system and monitoring of the operating states

  • mounted at surface (no submerged electronic parts)

  • two control inputs for well probe (dry running protection), float or pressure switches, remote control etc.

  • automatic reset 20 minutes after well probe turns pump off

  • protected against reverse polarity, overload and high temperature

  • speed control, max. pump speed adjustable to reduce flow rate to approx. 30 %

  • solar operation: integrated MPPT (Maximum Power Point Tracking)

  • battery operation: low voltage disconnect and restart after battery has recovered

  • max. efficiency 88 % (motor + controller)

  • enclosure: IP 54 (sealed, weatherproof)

Motor ECDRIVE 600 HR / 200 C

  • brushless DC motor

  • water filled

  • dynamic slide bearings, material: carbon/ceramic

  • wetted material: stainless steel (AISI 316), POM, rubber, cable drinking water approved



Pump end (PE)

  • high life expectancy

  • none-return valve

  • dry running protection (optional)

  • material: stainless steel (AISI 316), rubber



for HR pumps only

  • helical rotor pump (positive displacement pump)

  • two main parts only: stator and rotor, field servicable

  • stator: geometry made of abrasion resistant rubber

  • rotor: stainless steel, hard chrome plated, abrasion resistant

  • more resistant to damage by sand than other pump types

  • self-cleaning










Datasheet

PS600

HR-03

HR-03H

HR-04

HR-04H

Model

LPP00032

LPP00033

LPP00034

LPP00035

lift [m]

0-140

140-180

0-80

80-140

max. flow rate [m3/h]

0.5

0.5

0.8

0.8

max. efficiency [%]

60

64

60

65

solar operation

nominal voltage 48-72 V DC
open circuit voltage max. 150 V DC

solar generator [Wp]

300-480

420-900

300-480

420-900

battery operation

nominal voltage 48 V DC

PS600

HR-07

HR-10

HR-14

HR-20

Model

LPP00036

LPP00037

LPP00038

LPP00039

lift [m]

40-90

30-60

0-50

0-30

max. flow rate [m3/h]

1.2

1.9

2.7

3.6

max. efficiency [%]

64

64

65

64

solar operation

nominal voltage 48-72 V DC
open circuit voltage max. 150 V DC

solar generator [Wp]

420-900

420-900

300-900

420-900

battery operation

nominal voltage 48 V DC

PS600

C-SJ5-8

C-DF-03

Model

LPP00040

LPP00041

lift [m]

0-20

0-10

max. flow rate [m3/h]

7.3

11

max. efficiency [%]

40

40

solar operation

nominal voltage 48-72 V DC
open circuit voltage max. 150 V DC

solar generator [Wp]

300-900

720-900

battery operation

nominal voltage 48 V DC

Overview

  • lift up to 180 m

  • flow rate up to 11 m3/h

  • simple installation

  • maintenance-free

  • high reliability and life expectancy

  • cost-efficient pumping

  • 2 years manufacturer's warranty against defects in material and workmanship

Applications

  • drinking water supply

  • livestock watering

  • pond management

  • irrigation

  • etc.

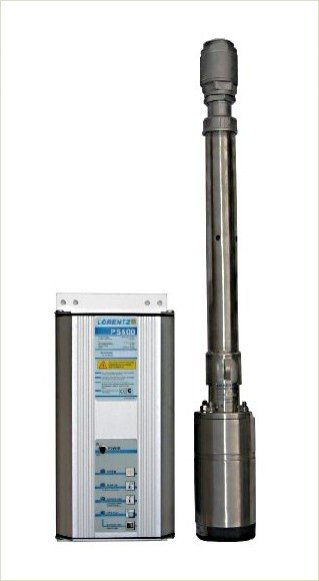

Controller PS600

  • controlling of the pump system and monitoring of the operating states

  • mounted at surface (no submerged electronic parts)

  • two control inputs for well probe (dry running protection), float or pressure switches, remote control etc.

  • automatic reset 20 minutes after well probe turns pump off

  • protected against reverse polarity, overload and high temperature

  • speed control, max. pump speed adjustable to reduce flow rate to approx. 30 %

  • solar operation: integrated MPPT (Maximum Power Point Tracking)

  • battery operation: low voltage disconnect and restart after battery has recovered

  • max. efficiency 92 % (motor + controller)

  • enclosure: IP 54 (sealed, weatherproof)

Motor ECDRIVE 600 HR / C

  • brushless DC motor

  • water filled

  • IP 68, pressure balanced, max. submersion unlimited

  • dynamic slide bearings, material: carbon/ceramic

  • wetted material: stainless steel (AISI 316), POM, rubber, cable drinking water approved



Pump end (PE)

  • high life expectancy

  • none-return valve

  • dry running protection (optional)

  • material: stainless steel (AISI 316), rubber



for HR pumps only

  • helical rotor pump (positive displacement pump)

  • two main parts only: stator and rotor

  • stator: geometry made of abrasion resistant rubber

  • rotor: stainless steel, hard chrome plated, abrasion resistant

  • more resistant to damage by sand than other pump types

  • self-cleaning










Datasheet

PS1200

HR-03

HR-03H

HR-04

HR-04H

Model

LPP00042

LPP00043

LPP00044

LPP00045

lift [m]

0-140

140-240

0-80

80-160

max. flow rate [m3/h]

0.5

0.5

0.8

0.8

max. efficiency [%]

60

64

60

65

solar operation

nominal voltage 72-96 V DC
open circuit voltage max. 200 V DC

solar generator [Wp]

350-480

420-900

350-420

420-1200

battery operation

nominal voltage 72-96 V DC

PS1200

HR-07

HR-10

HR-14

HR-20

Model

LPP00046

LPP00047

LPP00048

LPP00049

lift [m]

40-120

30-80

0-60

0-40

max. flow rate [m3/h]

1.2

1.9

2.7

3.6

max. efficiency [%]

64

64

65

64

solar operation

nominal voltage 72-96 V DC
open circuit voltage max. 200 V DC

solar generator [Wp]

420-1200

420-1200

350-1200

480-1200

battery operation

nominal voltage 72-96 V DC

PS1200

C-BF-04

C-DF-03

Model

LPP00050

LPP00051

lift [m]

0-25

0-15

max. flow rate [m3/h]

7.3

11

max. efficiency [%]

40

40

solar operation

nominal voltage 72-96 V DC
open circuit voltage max. 200 V DC

solar generator [Wp]

350-1200

840-1200

battery operation

nominal voltage 72-96 V DC

Overview

  • lift up to 240 m

  • flow rate up to 11 m3/h

  • simple installation

  • maintenance-free

  • high reliability and life expectancy

  • cost-efficient pumping

  • 2 years manufacturer's warranty against defects in material and workmanship

Applications

  • drinking water supply

  • livestock watering

  • pond management

  • irrigation

  • etc.

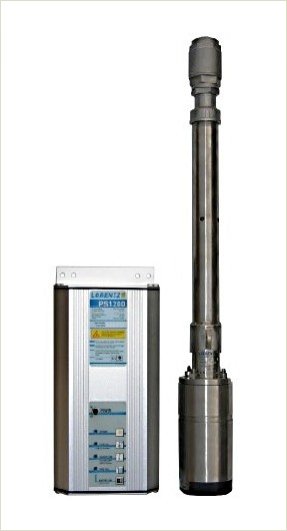

Controller PS1200

  • controlling of the pump system and monitoring of the operating states

  • mounted at surface (no submerged electronic parts)

  • two control inputs for well probe (dry running protection), float or pressure switches, remote control etc.

  • automatic reset 20 minutes after well probe turns pump off

  • protected against reverse polarity, overload and high temperature

  • speed control, max. pump speed adjustable to reduce flow rate to approx. 30 %

  • solar operation: integrated MPPT (Maximum Power Point Tracking)

  • battery operation: low voltage disconnect and restart after battery has recovered

  • max. efficiency 92 % (motor + controller)

  • enclosure: IP 54 (sealed, weatherproof)

Motor ECDRIVE 1200 HR / C

  • brushless DC motor

  • water filled

  • dynamic slide bearings, material: carbon/ceramic

  • wetted material: stainless steel (AISI 316), POM, rubber, cable drinking water approved



Pump end (PE)

  • high life expectancy

  • none-return valve

  • dry running protection (optional)

  • material: stainless steel (AISI 316), rubber



for HR pumps only

  • helical rotor pump (positive displacement pump)

  • two main parts only: stator and rotor

  • stator: geometry made of abrasion resistant rubber

  • rotor: stainless steel, hard chrome plated, abrasion resistant

  • more resistant to damage by sand than other pump types

  • self-cleaning









Datasheet

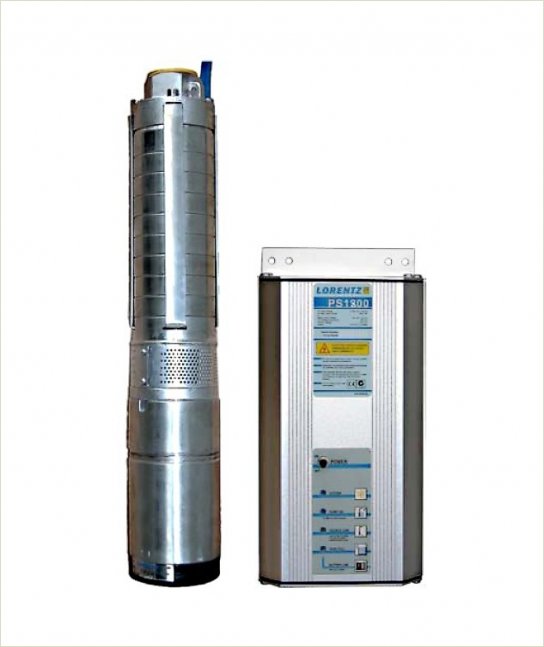

PS1800

SJ12-4

SJ8-7

SJ5-8

SJ5-12

Model

LPP00061

LPP00060

LPP00059

LPP00077

lift [m]

5 - 15

10 - 25

15 - 35

40-65

max. flow rate [m3/day ]

180

110

65

45



solar operation

nominal voltage 72-96 V DC
open circuit voltage max. 200 V DC

solar generator [Wp]

max. 2500

battery operation

nominal voltage 72-96 V DC

Model PS 1800 SJ3-18 PS1800 HR23-X
Cod LPP00058 LPP00078



Overview

  • lift up to 250 m

  • flow rate up to 51 m3/h

  • simple installation

  • maintenance-free

  • high reliability and life expectancy

  • cost-efficient pumping

  • 2 years manufacturer's warranty against defects in material and workmanship

Applications

  • drinking water supply

  • livestock watering

  • pond management

  • irrigation

  • etc.

Controller PS1800

  • controlling of the pump system and monitoring of the operating states

  • mounted at surface (no submerged electronic parts)

  • two control inputs for well probe (dry running protection), float or pressure switches, remote control etc.

  • automatic reset 20 minutes after well probe turns pump off

  • protected against reverse polarity, overload and high temperature

  • speed control, max. pump speed adjustable to reduce flow rate to approx. 30 %

  • solar operation: integrated MPPT (Maximum Power Point Tracking)

  • battery operation: low voltage disconnect and restart after battery has recovered

  • max. efficiency 92 % (motor + controller)

  • enclosure: IP 54 (sealed, weatherproof)

Motor ECDRIVE 1800 C

  • brushless DC motor

  • no electronic parts in the motor

  • water filled

  • IP68, pressure balanced, unlimited submersion

  • dynamic slide bearings, material: carbon/ceramic

  • wetted material: stainless steel (AISI 316), POM, rubber, cable drinking water approved



Pump end (PE)

  • high life expectancy

  • none-return valve

  • dry running protection (optional)

  • material: stainless steel (AISI 316), rubber

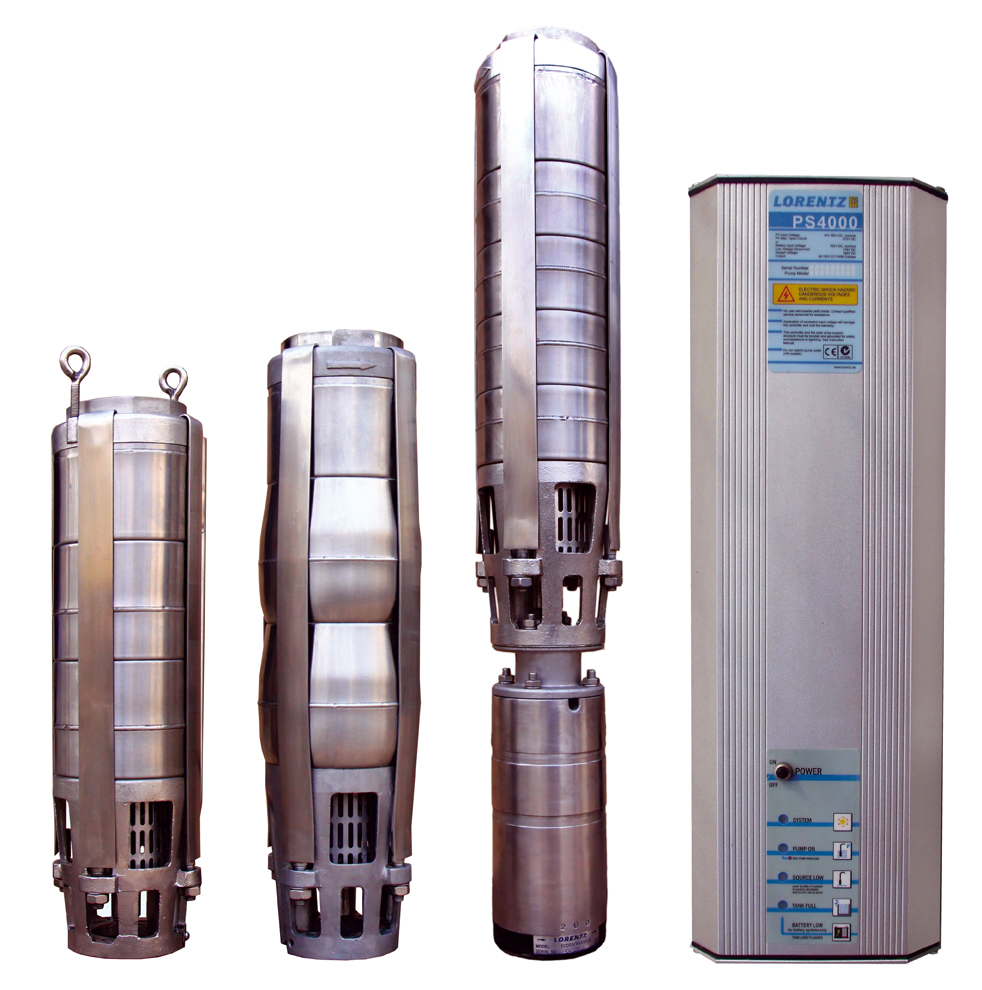

Datasheet



Cod MODEL Lift [m] Flow Rate [m3/h]
LPP00064 PS4000 C-SJ3-32 130– 170 3,3– 3,8
LPP00065 PS4000 C-SJ5-25 70– 130 4,3– 6,6
LPP00066 PS4000 C-SJ8-15 30– 80 6,9– 12,2
LPP00067 PS4000 C-SJ17-4 15– 50 14– 24,5
LPP00068 PS4000 C-SJ30-2 12– 22 33– 44
LPP......... PS4000 C-SJ42-1 max 12 44– 70



Manual Utilizare Pompe Lorentz 200-600-1200
Manual Utilizare Pompe Lorentz 200-600-1200-1800









Total Lift

PS150 Boost 60

PS150 Boost 125

PS150 Boost 240

Model LPP00052 LPP00053 LPP00054

[m]

[l/h]

[W]

[l/h]

[W]

[l/h]

[W]

5.0

260

35

480

50

900

65

10

260

40

470

55

900

90

15

250

45

470

62

890

105

20

250

55

470

70

880

120

25

250

63

460

80

880

135

30

250

72

450

90

870

150

40

250

80

450

105

870

200

45

240

85

450

112

860

225

50

240

90

450

120





60

240

95

430

140





70

240

110

420

160





80

240

125

410

185





90

240

140

410

200





100

230

165









120

230

185









140

220

220

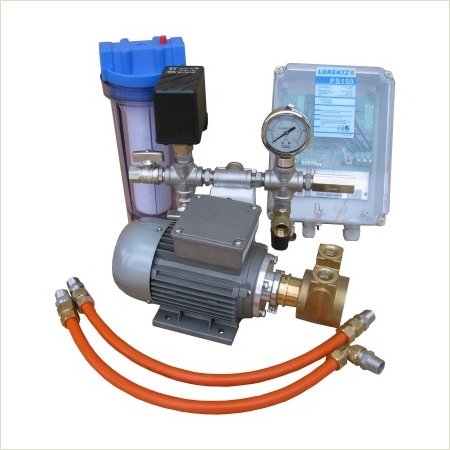

LORENTZ PS150 Boost provides city water pressure, anywhere. It has been a standard in home renewable energy systems since 1986. It is economical for domestic water supply, drip irrigation and water purification. Use solar-electric power to provide 250 to 10,000 litres per day from shallow water sources. PS150 Boost can push water as high as 140 m.

For 12 V to 24 V systems (1-2 solar modules or batteries in series) uses only one and the same motor and controller for solar direct or battery systems. Same flow at 12 V or 24 V.

LORENTZ PS150 Boost is not submersible, but can draw water from shallow wells, springs, cisterns, tanks, ponds, rivers and streams and push it through miles of pipeline. Slow pumping minimizes the size and cost of the solar array-battery system, wire and piping.

LORENTZ PS150 Boost is more powerful, quieter and much more durable than plastic RV/Marine pumps. It is less expensive than submersible DC pumps. Wearing parts typically last 5 to 10 years. Overall life expectancy is 15 to 20 years.

Short Overview

  • solar operated surface vane type pump

  • max lift up to 120 m

  • max. flow rate 0.9 m3/h

  • simple installation

  • high reliability and life expectancy

  • cost-efficient pumping

  • wetted materials: stainless steel, brass, rubber, plastic



Applications

  • drinking water supply

  • water purification and filtration

  • pressurizing for home water systems

  • drip irrigation

  • water circulation in thermal solar collectors (max. +60oC, +90 oC on request)

  • etc.

Suction Capacity

5 m (15 ft) at sea level. Subtract 1 m (3 ft) for every 1,000 m (3,300 ft) altitude. Pump should be placed as low and as close as possible to the water source. Suction capacity my be further limited by intake pipe friction (or clogged filter).

Intake piping should be 1” or larger.

Filtration Requirement

This pump cannot tolerate dirt. Water must be filtered clear. If water is very dirty, improve the source or consider a different pump.

PV-Direct (non-battery) Requirements

  • The rated power of the PV array must exceed pump watts by 20 % or more.

  • A linear current booster incl MPPT (maximum power point tracking) is already included !

  • Solar Tracker (optional) will increase daily yield (40-55 % in summer)



Installation

  • Pump may be mounted horizontally or vertically.

  • Pump must not be submerged

  • It may be placed inside a 6” (120 cm) or larger well casing, suspended by a rope



Accessories

  • Inline Filter: (10”) Uses standard filter cartridges

  • Installation Kit includes: Pressure switch, pressure gauge, check, drain and shut-off valves and tank tee.

  • Float switch for tank shut off if full.

  • Well probe sensor to protect pump from dry-running.



Dimensions

  • Pump Unit

  • Length: 33 cm (13”)

  • Weight: 7.0 kg (15 lb)

  • Controller

  • 260 x 175 x 100 mm (10" x 7" x 4")

  • Weight: 1.5 kg (3.6 lb)



Warranty

1 year against defects in materials and workmanship



  Descarca pdf

Pompe de suprafata

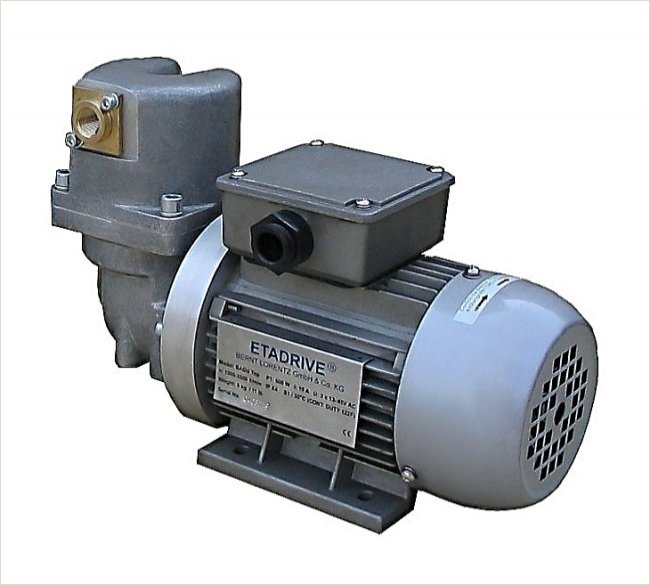

Pump System

                                 PS200 AIR

Model

LPP00055

max. differential pressure [bar]

0.6

max. flow rate [m3/h]

4.0

solar operation

nominal voltage 24-48 V DC
open circuit voltage max. 100 V DC

solar generator [Wp]

80-250

battery operation

nominal voltage 24-48 V DC

Overview

  • for air pumping

  • differential pressure up to 0.6 bar (air)

  • flow rate up to 4.0 m3/h (air)

  • simple installation

  • maintenance-free

  • high reliability and life expectancy

  • cost-efficient pumping

Applications

  • pond ventilation

  • oxygen enrichment of water

  • etc.

Motor ECDRIVE 200 AIR

  • brushless, maintenance-free DC motor



Controller PS200

  • controlling of the pump system and monitoring of the operating states

  • mounted at surface (no submerged electronic parts)

  • two control inputs for pressure switches, remote control etc.

  • protected against reverse polarity, overload and high temperature

  • speed control, max. pump speed adjustable to reduce flow rate to approx. 30 %

  • solar operation: integrated MPPT (Maximum Power Point Tracking)

  • battery operation: low voltage disconnect and restart after battery has recovered

  • max. efficiency 88 % (motor + controller)

  • enclosure: IP 54 (sealed, weatherproof)

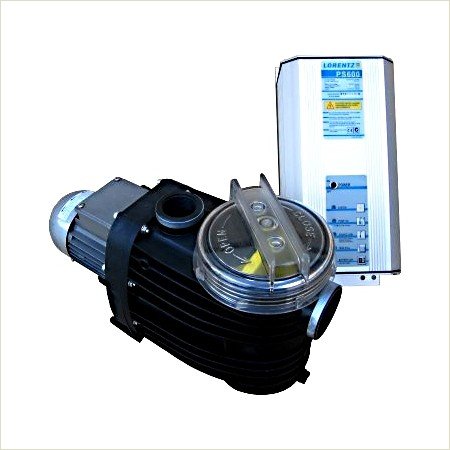

PS600 BADU Top12

Solar Operation

Battery Operation

max. flow rate [m3/h]

15

13

max. lift [m]

14

13

ambient temperature [oC]

-30 to +45

Controller

PS600

input voltage

solar generator:
nominal voltage
48-72 V DC
open circuit voltage
max. 150 V DC

battery, DC source:
nominal voltage
48 V DC

type of enclosure

IP 54

dimensions (net/packing)

395 x 175 x 165 mm / 450 x 250 x 250 mm
= 0.027 m3

weight (net/gross)

4.5 kg / 5.3 kg

Motor

ECDRIVE 600 BADU Top

max. power input [W]

600

type of enclosure

IP X4

class of insulation

F

Pump End

BADU Top 12 (manufacturer Speck Pumps)

suction / max. positive inlet lift

3.0 m

max. casing pressure

2.5 bar

max. water temperature

+60 oC

Motor + Pump End

ECDRIVE 600 BADU Top + BADU Top 12

dimensions (net / packing)

see dimension drawing:
520 x 220 x 350 mm
= 0.0400 m3

weight (net / gross)

8.7 kg / 9.7 kg

Overview

  • surface centrifugal pump for solar operation

  • flow rate up to 15 m3/h

  • simple installation

  • maintenance-free thanks to brushless DC motor

  • high reliability and life expectancy

  • cost-efficient pumping

  • 2 years manufacturer's warranty against defects in material and workmanship

Applications

  • swimming pool water circulation through a filter system and thermal collectors

  • pond management

  • irrigation

  • aquariums

  • etc.

Pump System

PS600 BADU Top 12

Model

LPP00056

controller

PS 600

motor

ECDRIVE 600 BADU Top

pump end (PE)

BADU Top 12
(manufacturer Speck Pumps)

source of energy
(not included in delivery)

solar generator (340-900 Wp)
battery, DC source

Pump end (PE) BADU Top 12

  • monoblock-type pump with integrated strainer tank

  • bellow mechanical seal is mounted on a plastic shaft protected sleeve

  • motor/pump shaft has no contact with fluid

  • total electric separation

  • strainer capacity approx. 3 l

  • strainer basket mesh size approx. 3.2 x 2.6 mm



Material used for pump end

  • pump casing, strainer basket: PP

  • flange, gland housing: PP TV 40

  • diffuser: PP TV 40

  • impeller: PA 66 GF 30 / PC

  • lid: PC, transparent

  • mechanical seal: carbon / ceramic / NBR

  • bolts: steel, galvanized



Motor ECDRIVE 600 BADU Top

  • brushless, maintenance-free DC motor



Controller PS600

  • controlling of the pump system and monitoring of the operating states

  • mounted at surface (no submerged electronic parts)

  • two control inputs for well probe (dry running protection), float or pressure switches, remote control etc.

  • automatic reset 20 minutes after well probe turns pump off

  • protected against reverse polarity, overload and high temperature

  • speed control, max. pump speed adjustable to reduce flow rate to approx. 30 %

  • solar operation: integrated MPPT (Maximum Power Point Tracking)

  • battery operation: low voltage disconnect and restart after battery has recovered

  • max. efficiency 92 % (motor + controller)



Descarca PS600 BADU pdf

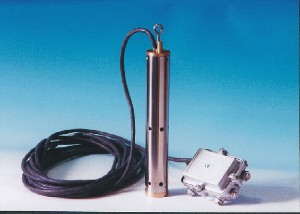

2. Pompa solara LJ



Pompele cu fiabilitate ridicata fara motor circular. Nu e necesar folosirea unei baterii. Aceasta pompa nu necesita intretinere si functioneaza cu un panou solar mic de 12 W , fara probleme. Este foarte utila pentru pomparea apei potabile, apa pentru incalzire solara, apa necesara unui dus de plaja si pentru irigarea gradinii. Aceasta pompa functioneaza cu energie solara pe tot parcursul zilei. Este o pompa cu debit scazut si nu sunt probleme care pot aparea din cauza nisipului.



  Cod Produs LPP00010
Model LJ10
Solar Pump
Putere 12W
Tensiune alimentare 12V
Dimensiune 50x25x20 cm
Greutate 5,2 kg
Adancimea maxima 10m

 Germania





  Cod Produs LPP00011
Model LJ20
Solar Pump
Putere 12W
Tensiune alimentare 24V
Dimensiune 50x25x20 cm
Greutate 5,2 kg
Adancimea maxima 20m

 Germania

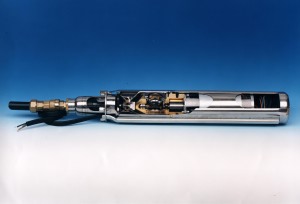

3. Pompa solara SPRING



Pompa Solara Spring submersibila cu ax-piston orizontal. La o putere de doar 200W, foloseste energia necesara a unui bec pentru a scoate apa de la o adancima mai mare de 100m. Are un motor care poate fi racit cu aer si deci poate functiona in gol. Doua pistoanecu un diametru de 40 mm, echilibrate , functioneaza prin “bataie” la o frecventa de pana la 3000rpm. Capacitatea de pompare este de 11m3/zi si poate fi considerate cea mai avansata tehnologie de pompare solara din lume.



  Cod Produs LPP00008
Model SSP
Solar Pump SSP
Putere 0W-200W
Tensiune alimentare 24V-80V

Greutate 14kg
Adancimea maxima max. 250m

 Germania

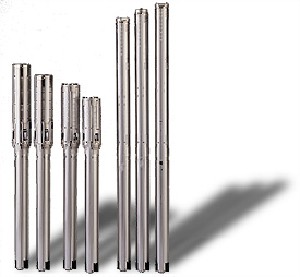

4. Pompa solara SQ Flex

Instalarea SQFlex Solar nu necesita nici un echipament special ci doar cuplarea directa la panouri solare. Este economica si nu necesita intretinere. Dispune de protectie impotriva functionarii in gol, supraincarcare si supraincalzire. Reporneste automat in prezenta apei sau cand temperatura motorului scade la limita normala. Dispune de monitorizare automata a sarcinii si a tensiunii de alimentare.













SQ Flex pentru uz orizontal si vertical
incl. Motor MSF3 1 x 90-240V, Rp 11/4
Solar Pump SSP
-10%/+6%, 50/60 Hz, 2m cablu de motor
cu sistem integrat MPP-Tracking

Danemarca

Cod Produs Model Dimensiune (mm) Greutate (Kg)
LPP00013 SQ Flex 1.2-2 1225x74 9,7
LPP00014 SQ Flex 0.6-2 1185x74 9,4
LPP00015 SQ Flex 2.5-2 1247x74 10
LPP00016 SQ Flex 5A-3 815x101 9,6
LPP00017 SQ Flex 5A-6 875x101 10,3
LPP00018 SQ Flex 8A-3 920x101 11
LPP00019 SQ Flex 14A-3 975x101 12,4

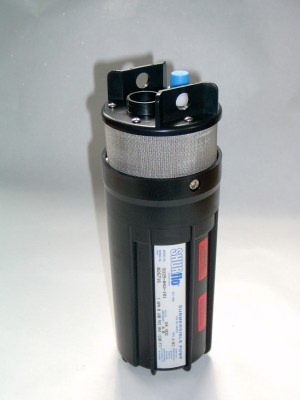

 5. Pompe solara Shurflo 9300



Pompele Shurflo's 9300 sunt produsul a 25 de ani de experienta in domeniu. Construit pentru a fi puternic si usor in acelasi timp aceste pompe au fost concepute pentru aplicatii ca irigatii sau acumulare de apa in bazine pentru uz casnic. Pentru acest tip e necesar un controler de pompa sau poate fi cumparat un set complet care include un 902-200 controler Shurflo.



Cod Produs

LPP00020

Dimension 95x305 mm

Weight 3,2 kg

USA

Deplasament pozitiv cu diafragma in 3 camere
Motor: magnet permanent ,  protectie termica
24 volts DC, 4.1 amps maximum. (P/N 11-175-00)
Internal bypass:105-110 PSI
Adancime Max de ridicare: 230 feet (70 meters)
Adancime maxima: 100 feet (30 meters)
Teava de iesire t: 1/2" (12.7 mm) barbed fitting for 1/2" ID tubing
Intrare pe ecran din inox din 50 de plase

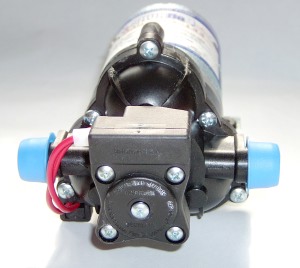

6. Pompa solara Shurflo 2088 12/24 V de presiune

Seria Shurflo 2088 de pompe este considerate “ caii de povara “ pentru sistemele mici de pompare pentru apa. Acestea sunt folosite in aplicatii unde e nevoie de un debit de pana la 13,6 litri/min. Aplicatile include irigatii de terenuri , alimetare bazine cu apa si aplicatile de pompare folsite la  barci sau iahturi. Acest pompe nu sunt concepute pentru folosire indelungata si conditii dure insa poate avea instalat un corp additional de racire de 4” (#34-007) pentru aceste aplicatii.

De asemenea dispune de protectie pentru mers in gol cat si de o valva de retinere a apei. Opereaza automat cu comutator la  presiune.



Shurflo Standard 8000-443-136 LPP00026

Heavy duty flow pump 12VDC, 30m, 6 l/min, 4 bar water pump, 1/2 MSPT port threads

1.8 GPM open flow, EPDM valves, Santoprene diaphragm

60 PSI Demand Switch, 1/2" MPT-Male ports.

USA





Shurflo Deluxe 2088-443-144 LPP00021
Deluxe delivery pump, 3,5 GPM,12VDC, 30m, 10 l/min,

2,8 bar water pump, 7A, 1/2" MPT port threads

 USA

Shurflo Premium 2088-514-145 w/Fin Cooled LPP00022
Premium delivery pump with heatsink, 3,6 GPM, 12VDC,

30m, 13,5 l/min, 3,5 bar water pump, 6A, 1/2" MSPT port threads

USA

Shurflo Sealed Premium 2088-414-534 LPP00023
w/Splash-Proof ShurCoted Motor

Premium delivery pump totally sealed, 3,6 GPM, 12VDC,
30m, 13,5 l/min, 2,8 bar water pump, 6A, 1/2" MSPT port threads

USA

Shurflo Deluxe 2088-474-144 LPP00024
Deluxe delivery pump, 3,0 GPM, 24VDC, 30m, 11,5 l/min,

2,8 bar water pump, 7A, 1/2" MSPT port threads

USA

Shurflo Sealed Premium 2088-574-534 LPP00025
Premium delivery pump totally sealed, 3,6 GPM, 24VDC,

30m, 13,5 l/min, 3,5 bar water pump, 6A, 1/2" MSPT port threads




Cod Produs Denumire Manual
LPU0004

Shurflo controller pump model LCB-G75

LPU0039 Shurflo controller pump model LCB- 0
(c) Copyright 2004-2011 ECOVOLT - LP ELECTRIC Systems. all Rights Reserved
