Inverters ISOFOTON - DC/AC

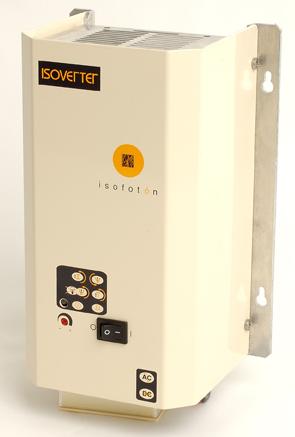

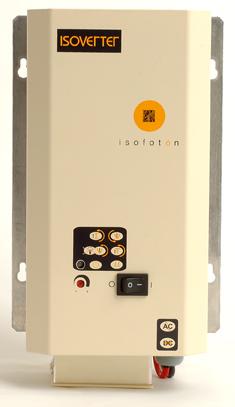

1. Series  inverters - ISOVERTER 250





Product Code LPI00070 LPI00071
Model ISOVERTER 250/12 ISOVERTER 250/24
Length 220 mm 220 mm
Width 140 mm 140 mm
Depth 95 mm 95 mm
Weight 3,5 kg 3,5 kg
Output waveform Pure sine wave Pure sine wave
Nominal input voltage 12 V 24 V
Input voltage range 10 – 16 V 20 – 36 V
Nominal output power 250 W 600 W
Nominal output voltage 230 or 110 230 or 110
Output voltage variation < 5% < 5%
Nominal frequency 50 or 60 Hz 50 or 60 Hz
Frequency variation < 1% < 1%
Efficiency with test load 85% < h < 95% 85% < h < 95%
Harmonic distortion with resistive load < 3 % < 3 %
Stand-by start/stop Adjustable 0 - 60W Adjustable 0 - 60W
Peak power allowed 300 W (3 minutes) 300 W (3 minutes)
400 (1 minutes) 400 (1 minutes)
> 400 (3 seconds) > 400 (3 seconds)
Auto consumption < 50 mA < 50 mA





  >>>back to top

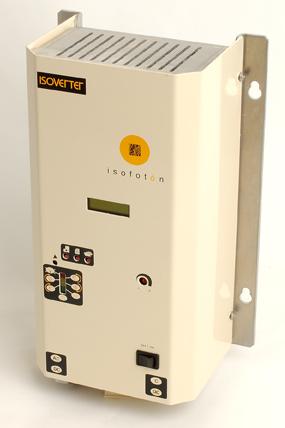

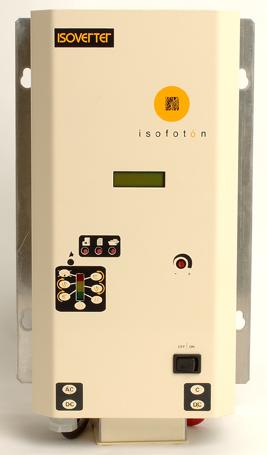

2.Series inverters - ISOVERTER 600







Product Code LPI00063 LPI00064
Model ISOVERTER 600/12 ISOVERTER 600/24
Length 315 mm 315 mm
Width 192 mm 192 mm
Depth 118 mm 118 mm
Weight 7 kg 7 kg
Output waveform Pure sine wave Pure sine wave
Nominal input voltage 12 V 24 V
Input voltage range 10 – 16 V 20 – 36 V
Nominal output power 600 W 600 W
Nominal output voltage 230 or 110 230 or 110
Output voltage variation £ 5% £ 5%
Nominal frequency 50 or 60 Hz 50 or 60 Hz
Frequency variation < 1% < 1%
Efficiency with test load 85% < h < 95% 85% < h < 95%
Harmonic distortion with resistive load < 3 % < 3 %
Stand-by start/stop Adjustable 0 - 60W Adjustable 0 - 60W
Peak power allowed 720 W (10 minutes) 720 W (10 minutes)
900 (60 seconds) 900 (60 seconds)
> 960 (3 seconds) > 960 (3 seconds)
Auto consumption < 75 mA < 75 mA

 >>>back to top



3. Series inverters - ISOVERTER 1500



Product Code LPI00065 LPI00066
Model ISOVERTER 1500/12 ISOVERTER 1500/24
Length 460 mm 460 mm
Width 255 mm 255 mm
Depth 130 mm 130 mm
Weight 15 Kg 15 Kg
Output waveform Pure sinusoidal Pure sinusoidal
Nominal input voltage 12 V 24 V
Input voltage range 10 – 16 V 20 – 36 V
Nominal output power 1500 W 1500 W
Nominal output voltage 230 or 110 V 230 or 110 V
Output voltage variation £ 5% £ 5%
Nominal frequency 50 or 60 Hz 50 or 60 Hz
Frequency variation £ 1% £ 1%
Efficiency with test load 85% < h < 95% 85% < h < 95%
Harmonic distortion with resistive load £ 3 % £ 3 %
Stand-by start/stop Adjustable 0 - 60 W Adjustable 0 - 60 W
Peak power allowed 1800 W (10 minutes) 1800 W (10 minutes)
2250 W (60 seconds) 2250 W (60 seconds)
> 2400 W (3 seconds) > 2400 W (3 seconds)
Auto consumption < 75 mA < 75 mA

  >>>back to top







 4. Series inverters - ISOVERTER 2000, 3000



Product Code LPI00067 LPI00068 LPI00069
Model ISOVERTER 2000/12 ISOVERTER 3000/24 ISOVERTER 3000/48
Length 535 mm 535 mm 535 mm
Width 285 mm 285 mm 285 mm
Depth 178 mm 178 mm 178 mm
Weight 25 Kg 25 Kg 25 Kg
Output waveform Pure sinusoidal Pure sinusoidal Pure sinusoidal
Nominal input voltage 12 V 24 V 48 V
Input voltage range 10 – 16 V 20 – 32 V 40 – 64 V
Nominal output power 2000 W 3000 W 3000 W
Nominal output voltage 230 or 110 V 230 or 110 V 230 or 110 V
Output voltage variation £ 5% £ 5% £ 5%
Nominal frequency 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz
Frequency variation £ 1% £ 1% £ 1%
Efficiency with test load 85% < h < 95% 85% < h < 95% 85% < h < 95%
Harmonic distortion with resistive load £ 3 % £ 3 % £ 3 %
Stand-by start/stop Adjustable 0 - 60 W Adjustable 0 - 60 W Adjustable 0 - 60 W
Peak power allowed 2400 W (10 minutes) 3600 W (10 minutes) 3600 W (10 minutes)
3000 W (60 seconds) 4500 W (60 seconds) 4500 W (60 seconds)
4000 W (2 seconds) 6000 W (2 seconds) 6000 W (2 seconds)
Auto consumption < 75 mA < 75 mA < 75 mA







  >>>back to top
