Photovoltaic Panels HELIOS





Helios Mono Crystalline Solar Modules - High quality monocrystalline solar modules from Helios. The 80 Watt module has been judged as "good" by "Stiftung Warentest" (well known independent quality test institute). The modules are highly efficient and guarantee an 80% level of performance for 25 years. They are framed with high quality aluminium profiles and are supplied with a water protected junction box (IP 65).

Aplicatii cu panouri solare

Sisteme cu panouri solare









Tip Celula: mono-Si
Putere Maxima (W) : 20
Curent Scurt-Circuit (A) : 1,36
Tensiune Circuit Deschis (V) : 20,5
I la Pmax (A) : 1,21
U la Pmax (V) : 16,5
Lungime (mm): 524
Latime (mm) : 325
Aria ( m2) : 0,1703
Cod Produs: LPS00237

Greutate ( KG) :

 2,35
Model: H245-20 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified



<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 35
Curent Scurt-Circuit (A) : 2,38
Tensiune Circuit Deschis (V) : 20,5
I la Pmax (A) : 2,11
U la Pmax (V) : 16,5
Lungime (mm): 690
Latime (mm) : 430
Aria ( m2) : 0,2967
Cod Produs: LPS00238 Greutate ( KG) : 4,2
Model: H272-35 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified



<<<back to top
Tip Celula: mono-Si
Putere Maxima (W) : 40
Curent Scurt-Circuit (A) : 2,72
Tensiune Circuit Deschis (V) : 20,5
I la Pmax (A) : 2,42
U la Pmax (V) : 16,5
Lungime (mm): 620
Latime (mm) : 524
Aria ( m2) : 0,32488
Cod Produs: LPS00239 Greutate ( KG) : 4,8
Model: H276-40 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top
Tip Celula: mono-Si
Putere Maxima (W) : 50
Curent Scurt-Circuit (A) : 3,5
Tensiune Circuit Deschis (V) : 20,8
I la Pmax (A) : 3
U la Pmax (V) : 16,66
Lungime (mm): 370
Latime (mm) : 1040
Aria ( m2) : 0,3848
Cod Produs: LPS00240 Greutate ( KG) : 5,4
Model: H114-50 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top
Tip Celula: mono-Si
Putere Maxima (W) : 50
Curent Scurt-Circuit (A) : 3,5
Tensiune Circuit Deschis (V) : 20,8
I la Pmax (A) : 3
U la Pmax (V) : 16,66
Lungime (mm): 740
Latime (mm) : 524
Aria ( m2) : 0,38776
Cod Produs: LPS00241 Greutate ( KG) : 0
Model: H580-50 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 50
Curent Scurt-Circuit (A) : 3,5
Tensiune Circuit Deschis (V) : 20,8
I la Pmax (A) : 3
U la Pmax (V) : 16,66
Lungime (mm): 524
Latime (mm) : 1130
Aria ( m2) : 0,59212
Cod Produs: LPS00242 Greutate ( KG) : 7,9
Model: H750-50 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top
Tip Celula: mono-Si
Putere Maxima (W) : 55
Curent Scurt-Circuit (A) : 3,8
Tensiune Circuit Deschis (V) : 20,9
I la Pmax (A) : 3,3
U la Pmax (V) : 16,67
Lungime (mm): 740
Latime (mm) : 524
Aria ( m2) : 0,38776
Cod Produs: LPS00243 Greutate ( KG) : 5,4

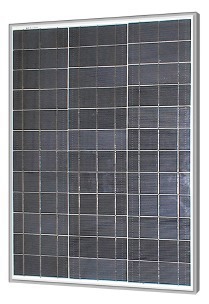

Model: H580-55 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 55
Curent Scurt-Circuit (A) : 3,8
Tensiune Circuit Deschis (V) : 20,9
I la Pmax (A) : 3,3
U la Pmax (V) : 16,67
Lungime (mm): 524
Latime (mm) : 1130
Aria ( m2) : 0,59212
Cod Produs: LPS00244 Greutate ( KG) : 7,9
Model: H750-55 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 65
Curent Scurt-Circuit (A) : 0
Tensiune Circuit Deschis (V) : 0
I la Pmax (A) : 0
U la Pmax (V) : 0
Lungime (mm): 524
Latime (mm) : 1130
Aria ( m2) : 0,59212
Cod Produs: LPS00245 Greutate ( KG) : 7,9
Model: H750-65 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 75
Curent Scurt-Circuit (A) : 4,78
Tensiune Circuit Deschis (V) : 21,6
I la Pmax (A) : 4,33
U la Pmax (V) : 17,3
Lungime (mm): 524
Latime (mm) : 1130
Aria ( m2) : 0,59212
Cod Produs: LPS00246 Greutate ( KG) : 7,9

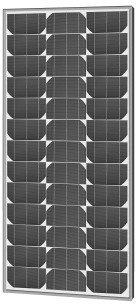

Model: H750-75 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 80
Curent Scurt-Circuit (A) : 5,1
Tensiune Circuit Deschis (V) : 20,9
I la Pmax (A) : 4,85
U la Pmax (V) : 16,5
Lungime (mm): 524
Latime (mm) : 1440
Aria ( m2) : 0,75456
Cod Produs: LPS00247 Greutate ( KG) : 14

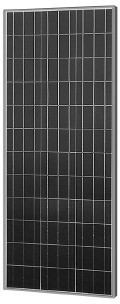

Model: H1160-80 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 100
Curent Scurt-Circuit (A) : 6,9
Tensiune Circuit Deschis (V) : 21
I la Pmax (A) : 6,06
U la Pmax (V) : 16,5
Lungime (mm): 524
Latime (mm) : 1440
Aria ( m2) : 0,75456
Cod Produs: LPS00248 Greutate ( KG) : 14
Model: H1160-100 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 100
Curent Scurt-Circuit (A) : 7,22
Tensiune Circuit Deschis (V) : 21
I la Pmax (A) : 6,47
U la Pmax (V) : 17
Lungime (mm): 1250
Latime (mm) : 565
Aria ( m2) : 0,70625
Cod Produs: LPS00249 Greutate ( KG) : 14
Model: H1350-100 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 130
Curent Scurt-Circuit (A) : 7,88
Tensiune Circuit Deschis (V) : 21
I la Pmax (A) : 7,06
U la Pmax (V) : 17
Lungime (mm): 690
Latime (mm) : 1700
Aria ( m2) : 1,173
Cod Produs: LPS00250 Greutate ( KG) : 14,5
Model: H1540-130 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 140
Curent Scurt-Circuit (A) : 9,24
Tensiune Circuit Deschis (V) : 23
I la Pmax (A) : 7,86
U la Pmax (V) : 17,8
Lungime (mm): 690
Latime (mm) : 1700
Aria ( m2) : 1,173
Cod Produs: LPS00251 Greutate ( KG) : 14,5

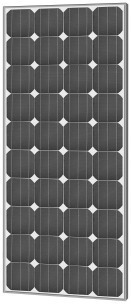

Model: H1540-140 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top

Tip Celula: mono-Si
Putere Maxima (W) : 150
Curent Scurt-Circuit (A) : 9,9
Tensiune Circuit Deschis (V) : 23
I la Pmax (A) : 8,42
U la Pmax (V) : 17,8
Lungime (mm): 690
Latime (mm) : 1700
Aria ( m2) : 1,173
Cod Produs: LPS00252 Greutate ( KG) : 14,5
Model: H1540-150 HELIOS
Certificari CE Mark Tܖ Safety Class II Certified

<<<back to top
